Frontrunner SB+
Solid-backed walk-off matting for interior and exterior areas without a mat well.
No mat well? No problem: Frontrunner SB is a solid-back entrance mat designed to be loose laid over your existing floor coverings.
The ribbed entrance mat scrapes shoes and wheels clean, while the grid traps and collects debris. This helps to prevent dirt being tracked inside, which helps to reduce cleaning intervals and keeps interiors looking stylish for longer.
Slip resistant, wheel-proof and heel-proof, Frontrunner SB has excellent rolling resistance, making it the ideal walk-off matting for commercial buildings, grocery stores and shopping centers with high foot traffic.
Installation is simple. Adhere directly to the floor to create a surface-mounted walk-off mat, or place this loose lay matting directly over your existing floor to create a slip-resistant walkway – no mat well required.
Seamless integration
Comes in 33" (10m) rolls or order a custom size
Seamless integration
Comes in 33" (10m) rolls or order a custom size
Simple installation
Simply roll out and cut to fit on site; contours to uneven surfaces
Simple installation
Simply roll out and cut to fit on site; contours to uneven surfaces
Easy to maintain
This ribbed floor mat is light to handle; no special cleaning tools needed
Easy to maintain
This ribbed floor mat is light to handle; no special cleaning tools needed
Features
Etched pattern
One-layer, hollow construction
Ribbed vinyl pattern with solid backing
1/4" (6.5mm) grid height
Close mesh grid
Benefits
Certified slip resistant (DIN 51130: R11, ASTM C1028: 0.6/0.6)
Lightweight
Easy to install, no need for recessed mat well
Loose lay or adhere to subfloor
Wheel and heel proof
| Frontrunner SB+ | |
| Height | 1/4"-5/16" (6.5/8mm) |
| Standard roll option | 33' x 3'3’ (10 x 1m) |
| Standard module option | 3'3" x 4'11" (1 x 1.5m) |
| Weight | 1.3lb/sq.ft (6.3 kg/m2) |
Surface modules are supplied with factory fitted PVC ramped edging to four sides
PVC BACKING:
| Acoustic | Excellent sound absorption |
| Chemical | Resistant to most acids, alkalines and oils. You can read more about specific chemical resistances by downloading this information sheet. |
| Composition | Flexible Polyvinyl Chloride (PVC) |
| Environment | Our Frontrunner system qualifies for LEED IEQ Credit 5, and when produced in black or gray, Frontrunner may also qualify for LEED MR Credit 4. We don’t use any substances included in the SVHC list under REACH in any of our matting products. |
| Fire | EN ISO 13501-1:2007-Cfl-S1, ASTM E648, Class 2 |
| Reversion | Thermoplastic shrinkage can result in size reductions up to 2%. This may be accelerated in hot environments. You can read more about the causes of shrinkage by downloading this information sheet. |
| Rolling resistance | ASTM F 2753: 0.080 loss of thickness after 1,000 cycles at 500lbs. |
| Slip resistance | ASTM E303 Dry/Wet with lines along–lines across 74-95 / 61-74 |
| Thermal | Designed to function at temperatures from -7°F and up to +140°F. Slight size variation may occur at temperature extremes. |
| UV light | Resistant to PVC degradation |
| Warranty | Three years. Visit our policies page for more information about warranties. |
ABSORBENT INSERTS (ZENO 600 SERIES):
| Wear classification | EN 1307 - 33, Commercial heavy |
| Pile material | ECONYL® , 100% regenerated polyamide BCF |
| Tuft base | 100% regenerated non woven polyester Colback™ |
| Phthalate Free backing | Waterproof Comfort™ vinyl |
| Total height | EN 1765 ± 11/32” |
| Pile height | EN 1766 ± 17/64” |
| Total weight | EN 8543 ± 101.09 lb/ft2 |
| Pile yarn weight | ± 19.46 lb/ft2 |
| Pile density | ± 0.00459 lbs/in3 |
| Fire | EN ISO 13501-1:2007 Cfl-S1 |
| Suitable for castor chairs | EN 985 A, intensive use r=2.8 |
| Colours | 10 |
PVC edging (SB / SB+)
Supplied in rolls of 197" (60m) length. One tube of cold welding paste recommended for every 33' of edging. Comes in black and dark gray. Size: 1/4" x 1" x 197' (6.5mm x 30mm x 60m)
PVC edging (SB / SB+)
Supplied in rolls of 197" (60m) length. One tube of cold welding paste recommended for every 33' of edging. Comes in black and dark gray. Size: 1/4" x 1" x 197' (6.5mm x 30mm x 60m)
PVC joining strip (SB / SB+)
Can be welded to join rolls end-to-end or side-to-side when doing large installations. Comes in black. Size: 1/8" x 11'9" (3.5mm x 3.6m)
PVC joining strip (SB / SB+)
Can be welded to join rolls end-to-end or side-to-side when doing large installations. Comes in black. Size: 1/8" x 11'9" (3.5mm x 3.6m)

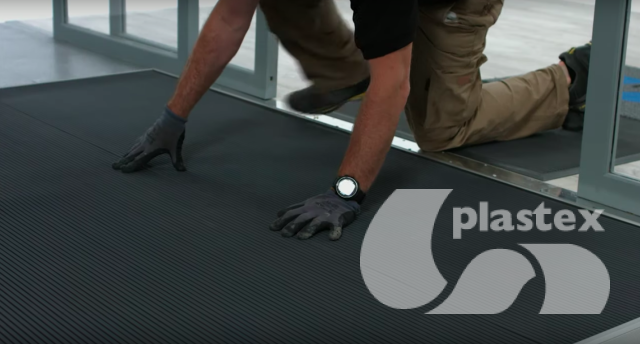

Frontrunner SB+'s one-piece construction means installation is simple
There are two ways to install SB: you can adhere directly to the floor, or loose lay modules with PVC edging. For large installations with medium to high traffic, we recommend adhering your mat using F Ball’s Styccobond F73 PLUS, which is a single-part, heavy-duty adhesive that provides high bond strength.
Watch the videos below for step-by-step installation guides or download the recessed entrance matting installation instructions and the surface-mounted installation instructions.
Keeping Frontrunner SB+ looking good is easy
- Lightweight
- Simply roll or lift to clean
- No special tools needed
- Quick and easy to vacuum
Watch our step-by-step guide to daily, weekly and monthly cleaning below or download the cleaning instructions here.
Download our BIM objects in both Revit and IFC file types
Features
Etched pattern
One-layer, hollow construction
Ribbed vinyl pattern with solid backing
1/4" (6.5mm) grid height
Close mesh grid
Benefits
Certified slip resistant (DIN 51130: R11, ASTM C1028: 0.6/0.6)
Lightweight
Easy to install, no need for recessed mat well
Loose lay or adhere to subfloor
Wheel and heel proof
| Frontrunner SB+ | |
| Height | 1/4"-5/16" (6.5/8mm) |
| Standard roll option | 33' x 3'3’ (10 x 1m) |
| Standard module option | 3'3" x 4'11" (1 x 1.5m) |
| Weight | 1.3lb/sq.ft (6.3 kg/m2) |
Surface modules are supplied with factory fitted PVC ramped edging to four sides
PVC BACKING:
| Acoustic | Excellent sound absorption |
| Chemical | Resistant to most acids, alkalines and oils. You can read more about specific chemical resistances by downloading this information sheet. |
| Composition | Flexible Polyvinyl Chloride (PVC) |
| Environment | Our Frontrunner system qualifies for LEED IEQ Credit 5, and when produced in black or gray, Frontrunner may also qualify for LEED MR Credit 4. We don’t use any substances included in the SVHC list under REACH in any of our matting products. |
| Fire | EN ISO 13501-1:2007-Cfl-S1, ASTM E648, Class 2 |
| Reversion | Thermoplastic shrinkage can result in size reductions up to 2%. This may be accelerated in hot environments. You can read more about the causes of shrinkage by downloading this information sheet. |
| Rolling resistance | ASTM F 2753: 0.080 loss of thickness after 1,000 cycles at 500lbs. |
| Slip resistance | ASTM E303 Dry/Wet with lines along–lines across 74-95 / 61-74 |
| Thermal | Designed to function at temperatures from -7°F and up to +140°F. Slight size variation may occur at temperature extremes. |
| UV light | Resistant to PVC degradation |
| Warranty | Three years. Visit our policies page for more information about warranties. |
ABSORBENT INSERTS (ZENO 600 SERIES):
| Wear classification | EN 1307 - 33, Commercial heavy |
| Pile material | ECONYL® , 100% regenerated polyamide BCF |
| Tuft base | 100% regenerated non woven polyester Colback™ |
| Phthalate Free backing | Waterproof Comfort™ vinyl |
| Total height | EN 1765 ± 11/32” |
| Pile height | EN 1766 ± 17/64” |
| Total weight | EN 8543 ± 101.09 lb/ft2 |
| Pile yarn weight | ± 19.46 lb/ft2 |
| Pile density | ± 0.00459 lbs/in3 |
| Fire | EN ISO 13501-1:2007 Cfl-S1 |
| Suitable for castor chairs | EN 985 A, intensive use r=2.8 |
| Colours | 10 |
PVC edging (SB / SB+)
Supplied in rolls of 197" (60m) length. One tube of cold welding paste recommended for every 33' of edging. Comes in black and dark gray. Size: 1/4" x 1" x 197' (6.5mm x 30mm x 60m)
PVC edging (SB / SB+)
Supplied in rolls of 197" (60m) length. One tube of cold welding paste recommended for every 33' of edging. Comes in black and dark gray. Size: 1/4" x 1" x 197' (6.5mm x 30mm x 60m)
PVC joining strip (SB / SB+)
Can be welded to join rolls end-to-end or side-to-side when doing large installations. Comes in black. Size: 1/8" x 11'9" (3.5mm x 3.6m)
PVC joining strip (SB / SB+)
Can be welded to join rolls end-to-end or side-to-side when doing large installations. Comes in black. Size: 1/8" x 11'9" (3.5mm x 3.6m)
Frontrunner SB+'s one-piece construction means installation is simple
There are two ways to install SB: you can adhere directly to the floor, or loose lay modules with PVC edging. For large installations with medium to high traffic, we recommend adhering your mat using F Ball’s Styccobond F73 PLUS, which is a single-part, heavy-duty adhesive that provides high bond strength.
Watch the videos below for step-by-step installation guides or download the recessed entrance matting installation instructions and the surface-mounted installation instructions.
Keeping Frontrunner SB+ looking good is easy
- Lightweight
- Simply roll or lift to clean
- No special tools needed
- Quick and easy to vacuum
Watch our step-by-step guide to daily, weekly and monthly cleaning below or download the cleaning instructions here.
Download our BIM objects in both Revit and IFC file types
