Frontrunner Plus
Internal entrance matting with carpet inserts for maximum moisture removal.
Heavy-duty entrance matting with absorbent carpet inserts, Frontrunner Plus is specifically designed to not only stop dirt in its tracks, but moisture too.
The entrance mat's aggressive tread pattern scrapes shoes and wheels clean, while the open grid enables any debris to quickly fall away, ensuring superior dirt removal. Simultaneously, the heavy-duty absorbent carpet inserts removes and dries any moisture. This reduces cleaning intervals, expands the life of your floor finishes and keeps interiors looking stylish for longer.
Slip resistant, wheel-proof and heel-proof, Frontrunner Plus is ideal commercial entrance matting for businesses, workplaces and shopping centers with high traffic. Choose from 50 color and style combinations to create a bespoke entrance floor mat – you can also add a logo panel for added branding.
Seamless integration
Choose from modules with ramped PVC edging, rolls in standard widths and 33' (10m) lengths, or order a custom size to create bespoke entrance flooring
Simple installation
One-piece construction means you can cut to size on site, with no previous site visits needed. Choose from surface-mounted or recessed installation.
Easy to maintain
Simply roll or lift to clean, no special tools needed
Features
Diamond cut pattern
Two-layer, open-grid construction
Absorbent carpet inserts
Close mesh grid
Comes in 33' (10m) rolls or modules
Benefits
Slip resistant, high soil removal
Excellent drainage
Maximum moisture removal
Heel and wheel proof
Seamless installation
| Frontrunner Plus | Low Profile | |
| Height | 9/16" – 5/8" (14-16mm) | 13/32" - 1/2" (10.5-12mm) |
| Standard roll options | 33' x 2’ (10 x 0.6m) | 33' x 2' (10 x 0.6m) |
| 33' x 3’ (10 x 0.91m) | 33' x 3' (10 x 0.91m) | |
| 33' x 4’ (10 x 1.2m) | 33' x 4' (10 x 1.2m) | |
| Standard module options | 2'7" x 4’ (0.8 x 1.2m) | |
| 3'3" x 4’11" (1 x 1.5m) | ||
| 3'7" x 6’7" (1.1 x 2m) | ||
| Weight | 2lbs/sq.ft (10.5 kg/m2) | 1.8lbs/sq.ft (8.7kg/m2) |
Surface modules are supplied with factory fitted PVC ramped edging to four sides.
PVC GRID:
| Acoustic | Excellent sound absorption |
| Chemical | Resistant to most acids, alkalines and oils. You can read more about specific chemical resistances by downloading this information sheet. |
| Composition | Flexible Polyvinyl Chloride (PVC) |
| Environment | Our Frontrunner system qualifies for LEED IEQ Credit 5, and when produced in black or gray, Frontrunner may also qualify for LEED MR Credit 4. We don’t use any substances included in the SVHC list under REACH in any of our matting products. |
| Fire | Frontrunner Plus: EN ISO 13501-1:2007-Cfl-S1, ASTM E648 – Class 1. Frontrunner Plus Low Profile: EN ISO 13501-1:2007-Cfl-S2. |
| Reversion | Thermoplastic shrinkage can result in size reductions up to 2%. This may be accelerated in hot environments. You can read more about the causes of shrinkage by downloading this information sheet. |
| Slip resistance | ASTM E303 Dry/Wet with lines along–lines across 104-87 / 69-62 |
| Thermal | Designed to function at temperatures from -9°F and up to +140°F. Slight size variation may occur at temperature extremes. |
| UV light | Resistant to PVC degradation |
| Warranty | Frontrunner Plus: three years. Frontrunner Plus Low Profile: two years. Visit our policies page for more information about warranties. |
ABSORBENT INSERTS (ZENO 600 SERIES):
| Wear classification | EN 1307 - 33, Commercial heavy |
| Pile material | ECONYL® , 100% regenerated polyamide BCF |
| Tuft base | 100% regenerated non woven polyester Colback™ |
| Phthalate Free backing | Waterproof Comfort™ vinyl |
| Total height | EN 1765 ± 11/32” |
| Pile height | EN 1766 ± 17/64” |
| Total weight | EN 8543 ± 101.09 lb/ft2 |
| Pile yarn weight | ± 19.46 lb/ft2 |
| Pile density | ± 0.00459 lbs/in3 |
| Fire | EN ISO 13501-1:2007 Cfl-S1 |
| Suitable for castor chairs | EN 985 A, intensive use r=2.8 |
| Colours | 10 |
For surface-mounted installations: Frontrunner Plus
For surface-mounted installations: Frontrunner Plus
PVC edging (H: 9/16, W: 2 1/2")
Supplied in rolls of 33’ (10.1m) length. One tube of cold welding paste recommended for every 33' of edging. Comes in black, dark gray, dark brown, holly green, Oxford blue, yellow. Size: 9/16" x 2 1/2" x 33' (14mm x 60mm x 10.1m)
PVC edging (H: 9/16, W: 3 3/4")
Supplied in rolls of 33’ (10.1m) length. One tube of cold welding paste recommended for every 33' of edging. Comes in black, dark gray and yellow. Size: 9/16" x 3 3/4" x 33' (14mm x 100mm x 10.1m)
PVC edging (H: 9/16, W: 2 1/2")
Supplied in rolls of 33’ (10.1m) length. One tube of cold welding paste recommended for every 33' of edging. Comes in black, dark gray, dark brown, holly green, Oxford blue, yellow. Size: 9/16" x 2 1/2" x 33' (14mm x 60mm x 10.1m)
Aluminum edging (H: 9/16")
Supplied in sections of 6'6" (2m) length with fixing screws and plugs. Comes in anodized aluminum and powder coated yellow. Size: 9/16" x 1 13 /16" x 6'6" (15mm x 45mm x 2m)
Connector clips: side-to-side (H: 9/16")
For joining sections of matting together side-to-side. Supplied in packs of 10
PVC edging (H: 9/16, W: 3 3/4")
Supplied in rolls of 33’ (10.1m) length. One tube of cold welding paste recommended for every 33' of edging. Comes in black, dark gray and yellow. Size: 9/16" x 3 3/4" x 33' (14mm x 100mm x 10.1m)
PVC snap track (H: 9/16")
Two-part snap track that can be welded together to join rolls end-to-end or side-to-side to cover large areas. We recommend one tube of cold welding paste for every 33’ of edging. Comes in dark gray. Size: 9/16" x 8'2" (14mm x 2.5m)
For recessed installations: Frontrunner Plus
Aluminum edging (H: 9/16")
Supplied in sections of 6'6" (2m) length with fixing screws and plugs. Comes in anodized aluminum and powder coated yellow. Size: 9/16" x 1 13 /16" x 6'6" (15mm x 45mm x 2m)
J Frame (H: 9/16")
Installing Frontrunner against a wall? You'll need a J frame to secure the matting on the left-to-right edges. Supplied in sections of 10' (3m) length. Comes in anodized aluminum. Size: 9/16" x 10' (14mm x 3m)
J frame (H: 11/16")
Installing Frontrunner against a wall? You'll need a J frame to secure the matting on the left-to-right edges. Supplied in sections of 10' (3m) length with fixing screws and plugs. Comes in dark gray and black. Size: 11/16" x 2 3/8" (18mm x 60mm)
Connector clips: side-to-side (H: 9/16")
For joining sections of matting together side-to-side. Supplied in packs of 10
T Frame inverted (H: 3/8")
You can use a T frame to divide the matting into sections left-to-right – this makes it easier to lift and clean. Supplied in sections of 10' (3m) length with fixing screws and plugs. Comes in anodized aluminum.
T frame (H: 9/16")
You can use a T frame (1") to divide the matting into sections left-to-right – this makes it easier to lift and clean. Supplied in sections of 10' (3m) length. Comes in anodized aluminum, powder coated dark gray and black
PVC snap track (H: 9/16")
Two-part snap track that can be welded together to join rolls end-to-end or side-to-side to cover large areas. We recommend one tube of cold welding paste for every 33’ of edging. Comes in dark gray. Size: 9/16" x 8'2" (14mm x 2.5m)
TL frame (H: 9/16")
You can use a T/L frame (2") to divide the matting into sections left-to-right – this makes it easier to lift and clean. Supplied in sections of 10' (3m) length. Comes in anodized aluminium
L frame (H: 5/8")

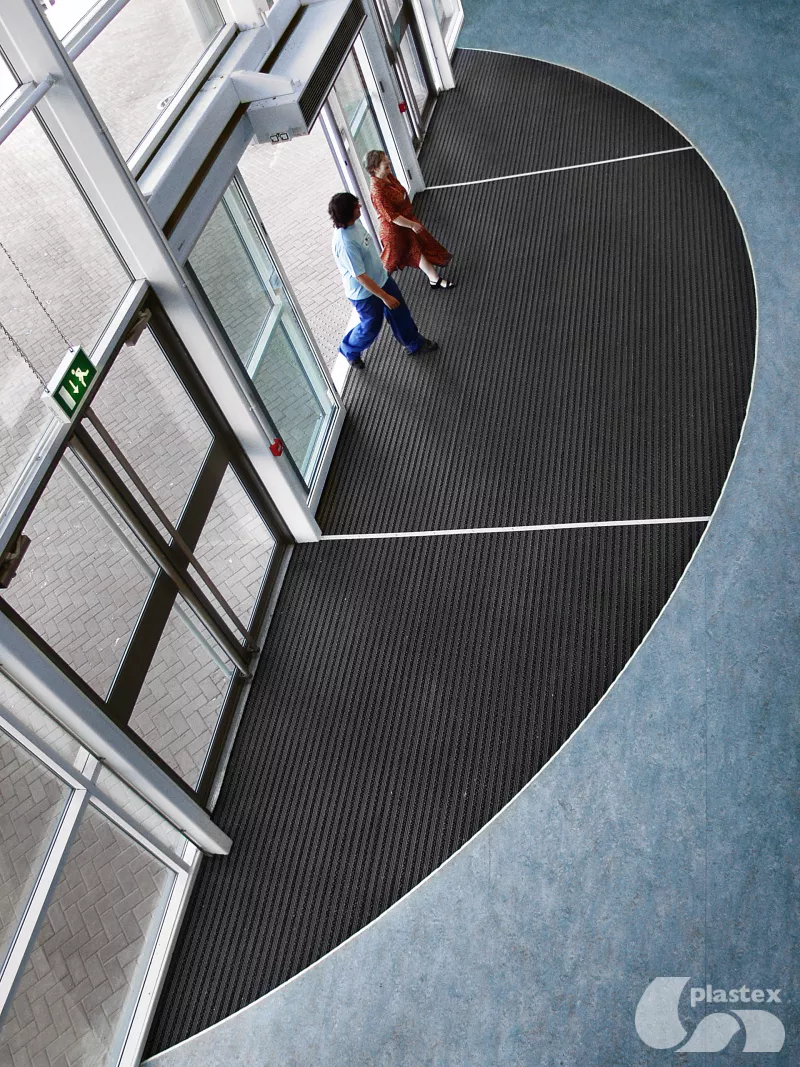

Installing around a circular door or non rectangular space? You'll need a L frame to secure the matting. Size: 5/8" x 8' (15mm x 2.7m length)
For recessed installations: Frontrunner Plus
U section (H: 9/16")
If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a U section to secure the different sections together. Supplied in sections of 10' (3m) length. Comes in anodized aluminum, powder coated dark gray and black. Size: 9/16" x 3/4" (14mm x 19mm)
R frame (H: 9/16")
You'll need these to secure the matting on the left-to-right edges. Supplied in sections of 10' (3m) length. Comes in anodized aluminum, powder coated dark gray and black. Size: 9/16" x 15/32" (14mm x 12mm)
J Frame (H: 9/16")
Installing Frontrunner against a wall? You'll need a J frame to secure the matting on the left-to-right edges. Supplied in sections of 10' (3m) length. Comes in anodized aluminum. Size: 9/16" x 10' (14mm x 3m)
H section (H: 9/16")
If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a H section to secure the different sections together. Supplied in sections of 12' (3m) length. Comes in black, with mat insert color specified. Size: 9/16" x 1/2" (14mm x 13mm).
For surface-mounted installations: Frontrunner Plus Low Profile
J frame (H: 11/16")
Installing Frontrunner against a wall? You'll need a J frame to secure the matting on the left-to-right edges. Supplied in sections of 10' (3m) length with fixing screws and plugs. Comes in dark gray and black. Size: 11/16" x 2 3/8" (18mm x 60mm)
PVC edging (H: 3/8", W: 2")
Supplied in rolls of 33’ (10.1m) length. One tube of cold welding paste recommended for every 33' of edging. Comes in black and dark gray. Size: 3/8" x 2" x 33' (10mm x 50mm x 10.1m)
Connector clips: side-to-side (H: 3/8")
For joining sections of low profile matting together side-to-side. Supplied in packs of 10
T Frame inverted (H: 3/8")
You can use a T frame to divide the matting into sections left-to-right – this makes it easier to lift and clean. Supplied in sections of 10' (3m) length with fixing screws and plugs. Comes in anodized aluminum.
PVC snap track (H: 3/8")
Two-part snap track that can be welded together to join rolls end-to-end or side-to-side to cover large areas. We recommend one tube of cold welding paste for every 33’ of edging. Comes in dark gray and black. Size: 13/32" x 8'2" (10.5mm x 2.5m)
For recessed installations: Frontrunner Plus Low Profile
T frame (H: 9/16")
You can use a T frame (1") to divide the matting into sections left-to-right – this makes it easier to lift and clean. Supplied in sections of 10' (3m) length. Comes in anodized aluminum, powder coated dark gray and black
J Frame (H: 3/8")
Installing Frontrunner against a wall? You'll need an edge J to secure the matting on the left-to-right edges. Supplied in sections of 10' (3m) length, no pre-drilled holes. Comes in anodized aluminum, sold in quantities of 100. Size: 3/8" x 10' (10mm x 3m)
U section (H: 3/8")
If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a U section to secure the different sections together. Supplied in sections of 10' (3m) length, with pre-drilled holes. Comes in aluminum. Size: 3/8" x 10’ (10mm x 3m)
TL frame (H: 9/16")
You can use a T/L frame (2") to divide the matting into sections left-to-right – this makes it easier to lift and clean. Supplied in sections of 10' (3m) length. Comes in anodized aluminium
R frame (H: 3/8")
You'll need these to secure the matting on the left-to-right edges. Supplied in sections of 10' (3m) length with fixing screws and plugs. Comes in anodized aluminum, powder coated dark gray and black. Size: 3/8" x 15/32" (10mm x 12mm)
L frame (H: 5/8")
Installing around a circular door or non rectangular space? You'll need a L frame to secure the matting. Size: 5/8" x 8' (15mm x 2.7m length)
Z frame (H: 3/8")
Installing matting next to ceramic tiles? You'll need a Z frame to secure the matting. Supplied in sections of 12' (3.6m) length with no pre-drilled holes. Comes in anodized aluminum. Size: 3/8" x 15/16" (10mm x 24mm)
H section (H: 3/8")
If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a H section to secure the different sections together. Supplied in sections of 12' (3.6m) length, with fixing screws and plugs. Comes in black, with mat insert colour specified. Size: 3/8" x 1/2" (10mm x 13mm)
U section (H: 9/16")
If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a U section to secure the different sections together. Supplied in sections of 10' (3m) length. Comes in anodized aluminum, powder coated dark gray and black. Size: 9/16" x 3/4" (14mm x 19mm)
R frame (H: 9/16")
You'll need these to secure the matting on the left-to-right edges. Supplied in sections of 10' (3m) length. Comes in anodized aluminum, powder coated dark gray and black. Size: 9/16" x 15/32" (14mm x 12mm)
H section (H: 9/16")
If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a H section to secure the different sections together. Supplied in sections of 12' (3m) length. Comes in black, with mat insert color specified. Size: 9/16" x 1/2" (14mm x 13mm).
For surface-mounted installations: Frontrunner Plus Low Profile
PVC edging (H: 3/8", W: 2")
Supplied in rolls of 33’ (10.1m) length. One tube of cold welding paste recommended for every 33' of edging. Comes in black and dark gray. Size: 3/8" x 2" x 33' (10mm x 50mm x 10.1m)
Connector clips: side-to-side (H: 3/8")
For joining sections of low profile matting together side-to-side. Supplied in packs of 10
PVC snap track (H: 3/8")
Two-part snap track that can be welded together to join rolls end-to-end or side-to-side to cover large areas. We recommend one tube of cold welding paste for every 33’ of edging. Comes in dark gray and black. Size: 13/32" x 8'2" (10.5mm x 2.5m)
For recessed installations: Frontrunner Plus Low Profile
J Frame (H: 3/8")
Installing Frontrunner against a wall? You'll need an edge J to secure the matting on the left-to-right edges. Supplied in sections of 10' (3m) length, no pre-drilled holes. Comes in anodized aluminum, sold in quantities of 100. Size: 3/8" x 10' (10mm x 3m)
U section (H: 3/8")
If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a U section to secure the different sections together. Supplied in sections of 10' (3m) length, with pre-drilled holes. Comes in aluminum. Size: 3/8" x 10’ (10mm x 3m)
R frame (H: 3/8")
You'll need these to secure the matting on the left-to-right edges. Supplied in sections of 10' (3m) length with fixing screws and plugs. Comes in anodized aluminum, powder coated dark gray and black. Size: 3/8" x 15/32" (10mm x 12mm)
Z frame (H: 3/8")
Installing matting next to ceramic tiles? You'll need a Z frame to secure the matting. Supplied in sections of 12' (3.6m) length with no pre-drilled holes. Comes in anodized aluminum. Size: 3/8" x 15/16" (10mm x 24mm)
H section (H: 3/8")
If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a H section to secure the different sections together. Supplied in sections of 12' (3.6m) length, with fixing screws and plugs. Comes in black, with mat insert colour specified. Size: 3/8" x 1/2" (10mm x 13mm)
Frontrunner Plus' one-piece construction means installation is simple
- Cut to fit on site – no special tools or previous site visits
- Integrates with all internal floor coverings
- Fits with different well depths
- Contours to the floor
Watch the videos below for step-by-step installation guides or download the recessed entrance matting installation instructions and the surface-mounted installation instructions.
Keeping Frontrunner Plus looking good is easy
- Reduces cleaning intervals
- Simply roll or lift to clean
- No special tools needed
- Easy to vacuum
Watch our step-by-step guide to daily, weekly and monthly cleaning below or download the cleaning instructions here.
We can incorporate a logo panel on any recessed or surface mounted mats.
The logo runs the width of the mat well and can either be 18 or 20” tall.
Get in touch with a member of our team to find out more.
Download our BIM objects in both Revit and IFC file types
Features
Diamond cut pattern
Two-layer, open-grid construction
Absorbent carpet inserts
Close mesh grid
Comes in 33' (10m) rolls or modules
Benefits
Slip resistant, high soil removal
Excellent drainage
Maximum moisture removal
Heel and wheel proof
Seamless installation
| Frontrunner Plus | Low Profile | |
| Height | 9/16" – 5/8" (14-16mm) | 13/32" - 1/2" (10.5-12mm) |
| Standard roll options | 33' x 2’ (10 x 0.6m) | 33' x 2' (10 x 0.6m) |
| 33' x 3’ (10 x 0.91m) | 33' x 3' (10 x 0.91m) | |
| 33' x 4’ (10 x 1.2m) | 33' x 4' (10 x 1.2m) | |
| Standard module options | 2'7" x 4’ (0.8 x 1.2m) | |
| 3'3" x 4’11" (1 x 1.5m) | ||
| 3'7" x 6’7" (1.1 x 2m) | ||
| Weight | 2lbs/sq.ft (10.5 kg/m2) | 1.8lbs/sq.ft (8.7kg/m2) |
Surface modules are supplied with factory fitted PVC ramped edging to four sides.
PVC GRID:
| Acoustic | Excellent sound absorption |
| Chemical | Resistant to most acids, alkalines and oils. You can read more about specific chemical resistances by downloading this information sheet. |
| Composition | Flexible Polyvinyl Chloride (PVC) |
| Environment | Our Frontrunner system qualifies for LEED IEQ Credit 5, and when produced in black or gray, Frontrunner may also qualify for LEED MR Credit 4. We don’t use any substances included in the SVHC list under REACH in any of our matting products. |
| Fire | Frontrunner Plus: EN ISO 13501-1:2007-Cfl-S1, ASTM E648 – Class 1. Frontrunner Plus Low Profile: EN ISO 13501-1:2007-Cfl-S2. |
| Reversion | Thermoplastic shrinkage can result in size reductions up to 2%. This may be accelerated in hot environments. You can read more about the causes of shrinkage by downloading this information sheet. |
| Slip resistance | ASTM E303 Dry/Wet with lines along–lines across 104-87 / 69-62 |
| Thermal | Designed to function at temperatures from -9°F and up to +140°F. Slight size variation may occur at temperature extremes. |
| UV light | Resistant to PVC degradation |
| Warranty | Frontrunner Plus: three years. Frontrunner Plus Low Profile: two years. Visit our policies page for more information about warranties. |
ABSORBENT INSERTS (ZENO 600 SERIES):
| Wear classification | EN 1307 - 33, Commercial heavy |
| Pile material | ECONYL® , 100% regenerated polyamide BCF |
| Tuft base | 100% regenerated non woven polyester Colback™ |
| Phthalate Free backing | Waterproof Comfort™ vinyl |
| Total height | EN 1765 ± 11/32” |
| Pile height | EN 1766 ± 17/64” |
| Total weight | EN 8543 ± 101.09 lb/ft2 |
| Pile yarn weight | ± 19.46 lb/ft2 |
| Pile density | ± 0.00459 lbs/in3 |
| Fire | EN ISO 13501-1:2007 Cfl-S1 |
| Suitable for castor chairs | EN 985 A, intensive use r=2.8 |
| Colours | 10 |
For surface-mounted installations: Frontrunner Plus
For surface-mounted installations: Frontrunner Plus
PVC edging (H: 9/16, W: 2 1/2")
Supplied in rolls of 33’ (10.1m) length. One tube of cold welding paste recommended for every 33' of edging. Comes in black, dark gray, dark brown, holly green, Oxford blue, yellow. Size: 9/16" x 2 1/2" x 33' (14mm x 60mm x 10.1m)
PVC edging (H: 9/16, W: 3 3/4")
Supplied in rolls of 33’ (10.1m) length. One tube of cold welding paste recommended for every 33' of edging. Comes in black, dark gray and yellow. Size: 9/16" x 3 3/4" x 33' (14mm x 100mm x 10.1m)
PVC edging (H: 9/16, W: 2 1/2")
Supplied in rolls of 33’ (10.1m) length. One tube of cold welding paste recommended for every 33' of edging. Comes in black, dark gray, dark brown, holly green, Oxford blue, yellow. Size: 9/16" x 2 1/2" x 33' (14mm x 60mm x 10.1m)
Aluminum edging (H: 9/16")
Supplied in sections of 6'6" (2m) length with fixing screws and plugs. Comes in anodized aluminum and powder coated yellow. Size: 9/16" x 1 13 /16" x 6'6" (15mm x 45mm x 2m)
Connector clips: side-to-side (H: 9/16")
For joining sections of matting together side-to-side. Supplied in packs of 10
PVC edging (H: 9/16, W: 3 3/4")
Supplied in rolls of 33’ (10.1m) length. One tube of cold welding paste recommended for every 33' of edging. Comes in black, dark gray and yellow. Size: 9/16" x 3 3/4" x 33' (14mm x 100mm x 10.1m)
PVC snap track (H: 9/16")
Two-part snap track that can be welded together to join rolls end-to-end or side-to-side to cover large areas. We recommend one tube of cold welding paste for every 33’ of edging. Comes in dark gray. Size: 9/16" x 8'2" (14mm x 2.5m)
For recessed installations: Frontrunner Plus
Aluminum edging (H: 9/16")
Supplied in sections of 6'6" (2m) length with fixing screws and plugs. Comes in anodized aluminum and powder coated yellow. Size: 9/16" x 1 13 /16" x 6'6" (15mm x 45mm x 2m)
J Frame (H: 9/16")
Installing Frontrunner against a wall? You'll need a J frame to secure the matting on the left-to-right edges. Supplied in sections of 10' (3m) length. Comes in anodized aluminum. Size: 9/16" x 10' (14mm x 3m)
J frame (H: 11/16")
Installing Frontrunner against a wall? You'll need a J frame to secure the matting on the left-to-right edges. Supplied in sections of 10' (3m) length with fixing screws and plugs. Comes in dark gray and black. Size: 11/16" x 2 3/8" (18mm x 60mm)
Connector clips: side-to-side (H: 9/16")
For joining sections of matting together side-to-side. Supplied in packs of 10
T Frame inverted (H: 3/8")
You can use a T frame to divide the matting into sections left-to-right – this makes it easier to lift and clean. Supplied in sections of 10' (3m) length with fixing screws and plugs. Comes in anodized aluminum.
T frame (H: 9/16")
You can use a T frame (1") to divide the matting into sections left-to-right – this makes it easier to lift and clean. Supplied in sections of 10' (3m) length. Comes in anodized aluminum, powder coated dark gray and black
PVC snap track (H: 9/16")
Two-part snap track that can be welded together to join rolls end-to-end or side-to-side to cover large areas. We recommend one tube of cold welding paste for every 33’ of edging. Comes in dark gray. Size: 9/16" x 8'2" (14mm x 2.5m)
TL frame (H: 9/16")
You can use a T/L frame (2") to divide the matting into sections left-to-right – this makes it easier to lift and clean. Supplied in sections of 10' (3m) length. Comes in anodized aluminium
L frame (H: 5/8")

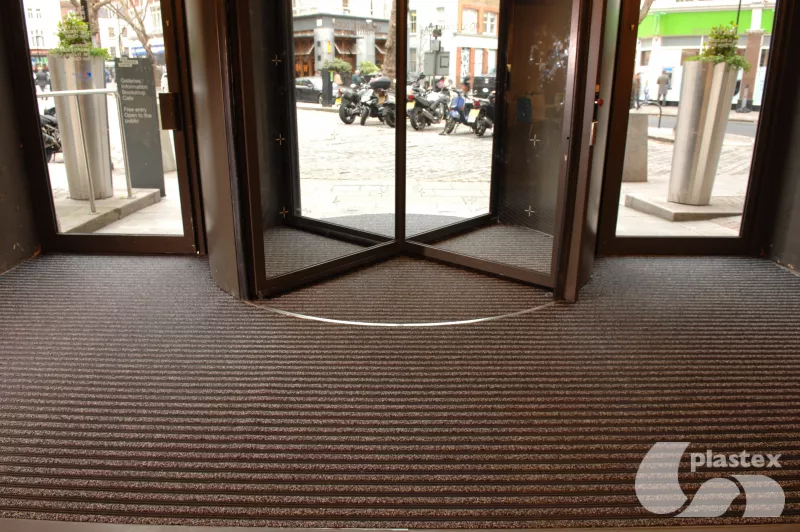

Installing around a circular door or non rectangular space? You'll need a L frame to secure the matting. Size: 5/8" x 8' (15mm x 2.7m length)
For recessed installations: Frontrunner Plus
U section (H: 9/16")
If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a U section to secure the different sections together. Supplied in sections of 10' (3m) length. Comes in anodized aluminum, powder coated dark gray and black. Size: 9/16" x 3/4" (14mm x 19mm)
R frame (H: 9/16")
You'll need these to secure the matting on the left-to-right edges. Supplied in sections of 10' (3m) length. Comes in anodized aluminum, powder coated dark gray and black. Size: 9/16" x 15/32" (14mm x 12mm)
J Frame (H: 9/16")
Installing Frontrunner against a wall? You'll need a J frame to secure the matting on the left-to-right edges. Supplied in sections of 10' (3m) length. Comes in anodized aluminum. Size: 9/16" x 10' (14mm x 3m)
H section (H: 9/16")
If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a H section to secure the different sections together. Supplied in sections of 12' (3m) length. Comes in black, with mat insert color specified. Size: 9/16" x 1/2" (14mm x 13mm).
For surface-mounted installations: Frontrunner Plus Low Profile
J frame (H: 11/16")
Installing Frontrunner against a wall? You'll need a J frame to secure the matting on the left-to-right edges. Supplied in sections of 10' (3m) length with fixing screws and plugs. Comes in dark gray and black. Size: 11/16" x 2 3/8" (18mm x 60mm)
PVC edging (H: 3/8", W: 2")
Supplied in rolls of 33’ (10.1m) length. One tube of cold welding paste recommended for every 33' of edging. Comes in black and dark gray. Size: 3/8" x 2" x 33' (10mm x 50mm x 10.1m)
Connector clips: side-to-side (H: 3/8")
For joining sections of low profile matting together side-to-side. Supplied in packs of 10
T Frame inverted (H: 3/8")
You can use a T frame to divide the matting into sections left-to-right – this makes it easier to lift and clean. Supplied in sections of 10' (3m) length with fixing screws and plugs. Comes in anodized aluminum.
PVC snap track (H: 3/8")
Two-part snap track that can be welded together to join rolls end-to-end or side-to-side to cover large areas. We recommend one tube of cold welding paste for every 33’ of edging. Comes in dark gray and black. Size: 13/32" x 8'2" (10.5mm x 2.5m)
For recessed installations: Frontrunner Plus Low Profile
T frame (H: 9/16")
You can use a T frame (1") to divide the matting into sections left-to-right – this makes it easier to lift and clean. Supplied in sections of 10' (3m) length. Comes in anodized aluminum, powder coated dark gray and black
J Frame (H: 3/8")
Installing Frontrunner against a wall? You'll need an edge J to secure the matting on the left-to-right edges. Supplied in sections of 10' (3m) length, no pre-drilled holes. Comes in anodized aluminum, sold in quantities of 100. Size: 3/8" x 10' (10mm x 3m)
U section (H: 3/8")
If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a U section to secure the different sections together. Supplied in sections of 10' (3m) length, with pre-drilled holes. Comes in aluminum. Size: 3/8" x 10’ (10mm x 3m)
TL frame (H: 9/16")
You can use a T/L frame (2") to divide the matting into sections left-to-right – this makes it easier to lift and clean. Supplied in sections of 10' (3m) length. Comes in anodized aluminium
R frame (H: 3/8")
You'll need these to secure the matting on the left-to-right edges. Supplied in sections of 10' (3m) length with fixing screws and plugs. Comes in anodized aluminum, powder coated dark gray and black. Size: 3/8" x 15/32" (10mm x 12mm)
L frame (H: 5/8")
Installing around a circular door or non rectangular space? You'll need a L frame to secure the matting. Size: 5/8" x 8' (15mm x 2.7m length)
Z frame (H: 3/8")
Installing matting next to ceramic tiles? You'll need a Z frame to secure the matting. Supplied in sections of 12' (3.6m) length with no pre-drilled holes. Comes in anodized aluminum. Size: 3/8" x 15/16" (10mm x 24mm)
H section (H: 3/8")
If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a H section to secure the different sections together. Supplied in sections of 12' (3.6m) length, with fixing screws and plugs. Comes in black, with mat insert colour specified. Size: 3/8" x 1/2" (10mm x 13mm)
U section (H: 9/16")
If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a U section to secure the different sections together. Supplied in sections of 10' (3m) length. Comes in anodized aluminum, powder coated dark gray and black. Size: 9/16" x 3/4" (14mm x 19mm)
R frame (H: 9/16")
You'll need these to secure the matting on the left-to-right edges. Supplied in sections of 10' (3m) length. Comes in anodized aluminum, powder coated dark gray and black. Size: 9/16" x 15/32" (14mm x 12mm)
H section (H: 9/16")
If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a H section to secure the different sections together. Supplied in sections of 12' (3m) length. Comes in black, with mat insert color specified. Size: 9/16" x 1/2" (14mm x 13mm).
For surface-mounted installations: Frontrunner Plus Low Profile
PVC edging (H: 3/8", W: 2")
Supplied in rolls of 33’ (10.1m) length. One tube of cold welding paste recommended for every 33' of edging. Comes in black and dark gray. Size: 3/8" x 2" x 33' (10mm x 50mm x 10.1m)
Connector clips: side-to-side (H: 3/8")
For joining sections of low profile matting together side-to-side. Supplied in packs of 10
PVC snap track (H: 3/8")
Two-part snap track that can be welded together to join rolls end-to-end or side-to-side to cover large areas. We recommend one tube of cold welding paste for every 33’ of edging. Comes in dark gray and black. Size: 13/32" x 8'2" (10.5mm x 2.5m)
For recessed installations: Frontrunner Plus Low Profile
J Frame (H: 3/8")
Installing Frontrunner against a wall? You'll need an edge J to secure the matting on the left-to-right edges. Supplied in sections of 10' (3m) length, no pre-drilled holes. Comes in anodized aluminum, sold in quantities of 100. Size: 3/8" x 10' (10mm x 3m)
U section (H: 3/8")
If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a U section to secure the different sections together. Supplied in sections of 10' (3m) length, with pre-drilled holes. Comes in aluminum. Size: 3/8" x 10’ (10mm x 3m)
R frame (H: 3/8")
You'll need these to secure the matting on the left-to-right edges. Supplied in sections of 10' (3m) length with fixing screws and plugs. Comes in anodized aluminum, powder coated dark gray and black. Size: 3/8" x 15/32" (10mm x 12mm)
Z frame (H: 3/8")
Installing matting next to ceramic tiles? You'll need a Z frame to secure the matting. Supplied in sections of 12' (3.6m) length with no pre-drilled holes. Comes in anodized aluminum. Size: 3/8" x 15/16" (10mm x 24mm)
H section (H: 3/8")
If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a H section to secure the different sections together. Supplied in sections of 12' (3.6m) length, with fixing screws and plugs. Comes in black, with mat insert colour specified. Size: 3/8" x 1/2" (10mm x 13mm)
Frontrunner Plus' one-piece construction means installation is simple
- Cut to fit on site – no special tools or previous site visits
- Integrates with all internal floor coverings
- Fits with different well depths
- Contours to the floor
Watch the videos below for step-by-step installation guides or download the recessed entrance matting installation instructions and the surface-mounted installation instructions.
Keeping Frontrunner Plus looking good is easy
- Reduces cleaning intervals
- Simply roll or lift to clean
- No special tools needed
- Easy to vacuum
Watch our step-by-step guide to daily, weekly and monthly cleaning below or download the cleaning instructions here.
We can incorporate a logo panel on any recessed or surface mounted mats.
The logo runs the width of the mat well and can either be 18 or 20” tall.
Get in touch with a member of our team to find out more.
Download our BIM objects in both Revit and IFC file types
Seen
something
you
like?
SIMILAR
PRODUCTS
YOU
MAY
LIKE
