Vynagrip

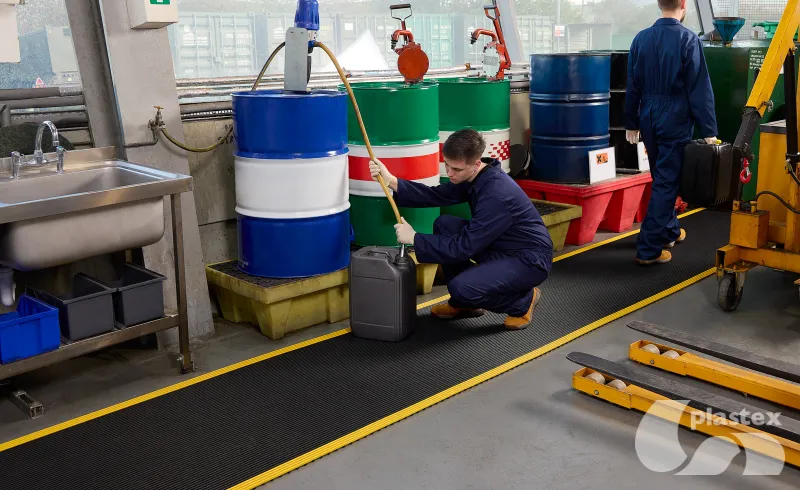

Hard-wearing, slip-resistant matting perfect for slippery environments and workplaces, including hospitality, food service and industrial.

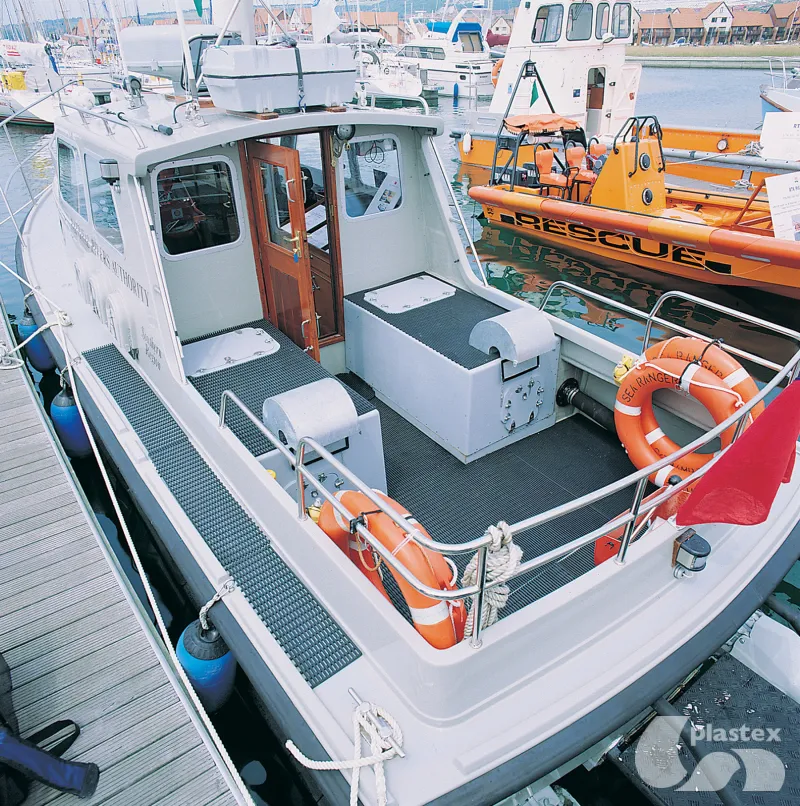

Designed to withstand all kinds of liquids, Vynagrip provides a superior defence against slippery environments. The mat’s diamond tread pattern delivers unparalleled traction underfoot, which not only helps to reduce the risk of people slipping but also helps to prevent equipment and vehicles from skidding.

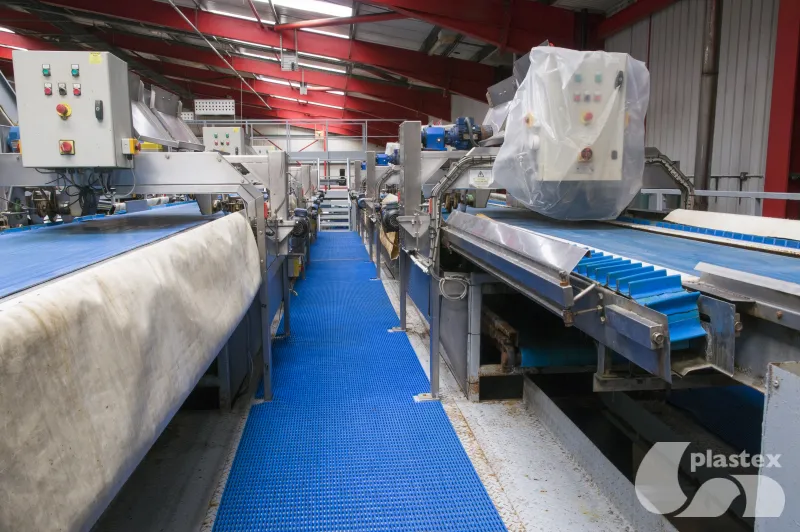

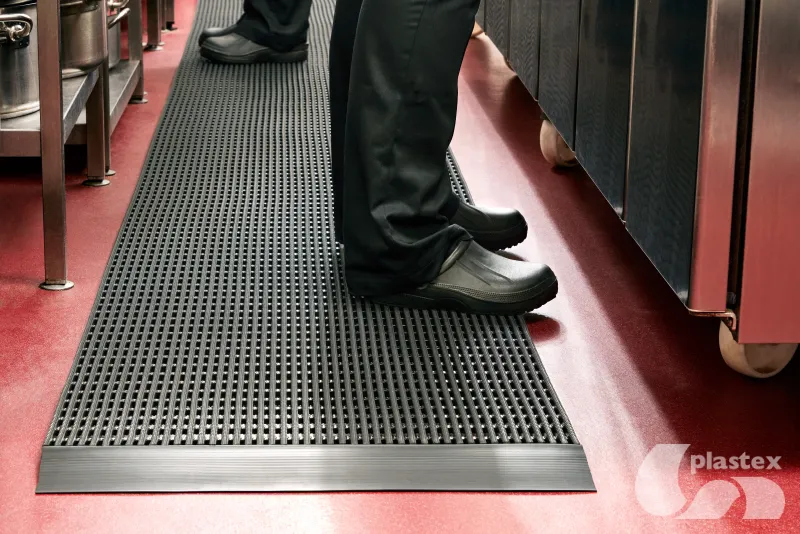

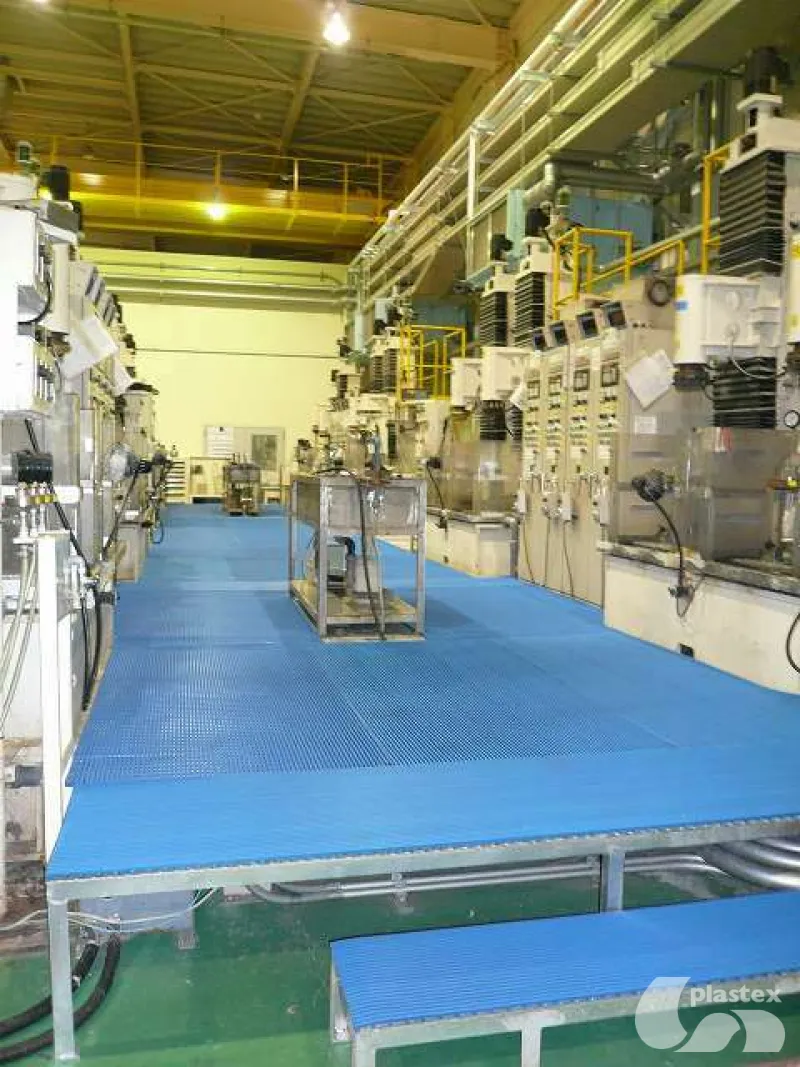

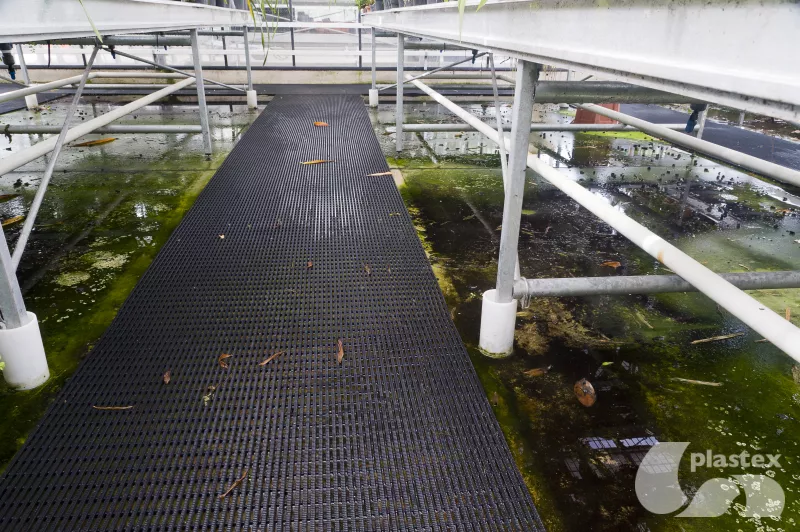

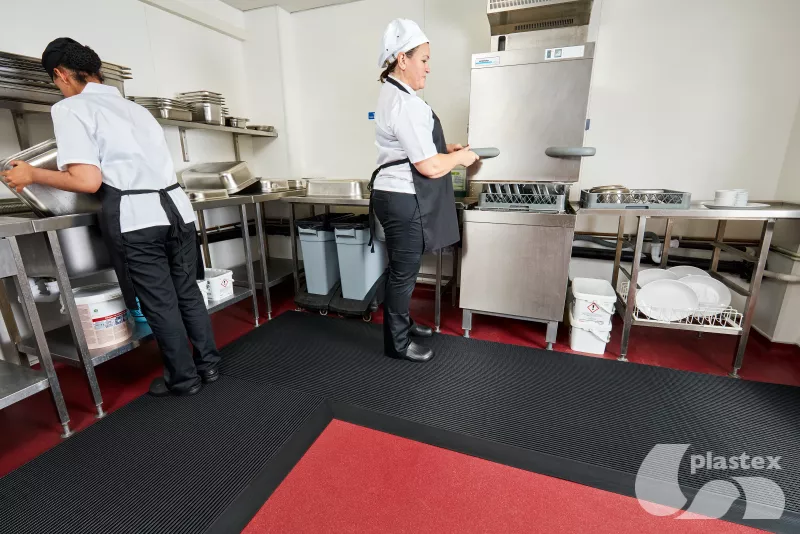

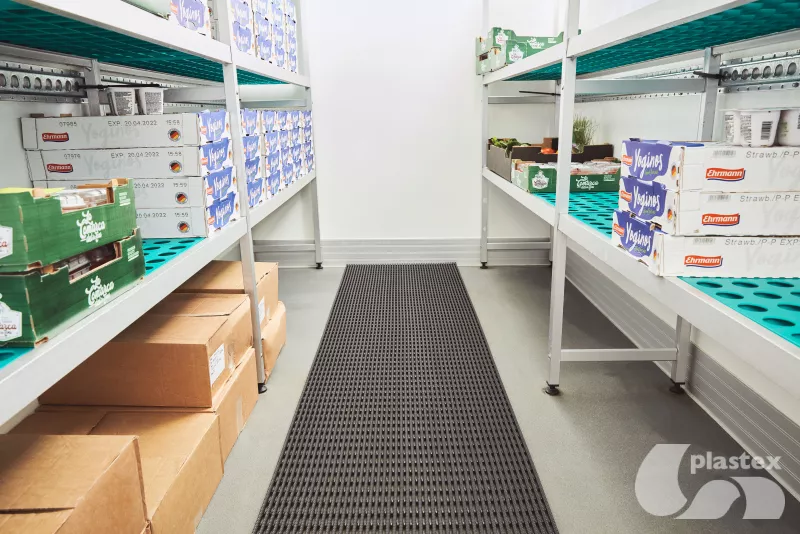

Made from non-porous PVC with a two-layer grid construction, this heavy-duty plastic matting features an open grid for excellent drainage, is impermeable to fluids, and can withstand low temperatures without cracking or curling. This winning combination makes Vynagrip the ideal refrigerator floor mat, walk-in freezer floor mat, or slip-resistant mat in any workplace where spillages are likely, including commercial food service areas and industrial environments.
Vynagrip’s non-porous construction also resists bacteria growth and mildew, providing the highest level of hygiene. It's also perfect for workplaces with standing employees: the two-layer construction provides comfortable cushioning and anti-fatigue properties proven to help boost productivity.
Flexible formats

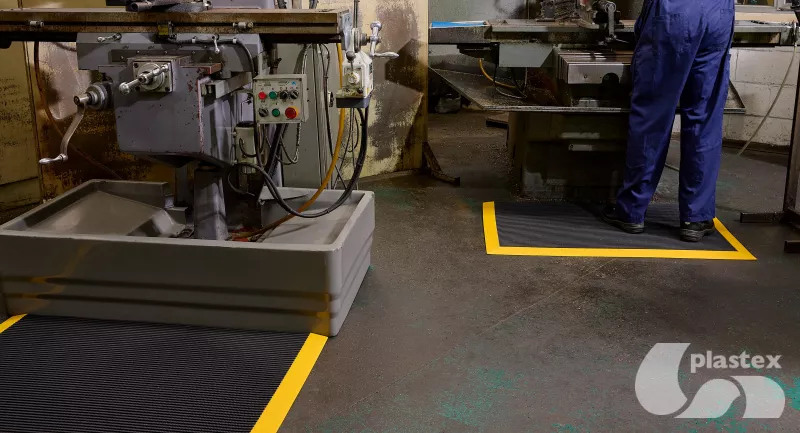

Choose from modules with ramped PVC edging or rolls in standard widths and 33’ (10m) lengths
Simple installation
This industrial mat is easy to cut on site and contours to uneven surfaces
Easy to maintain
No special cleaning tools needed; easy to clean with a high pressure hose
Features
Diamond cut pattern

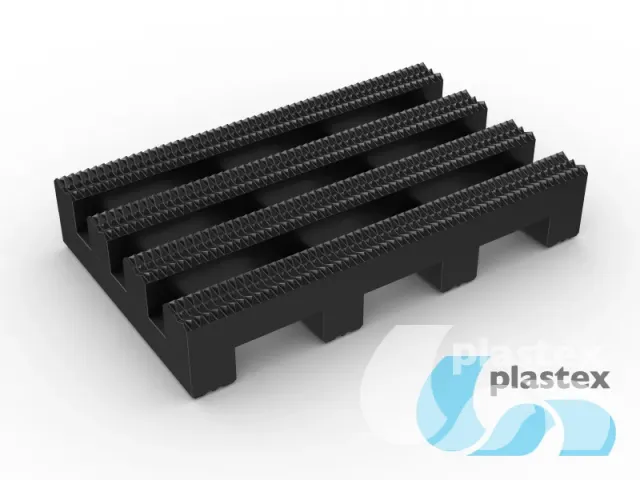

Two layer open-grid construction
Made from non-porous PVC
Proven anti-fatigue properties
Comes in 10m (33') rolls or ramped modules
Benefits
Certified slip resistant (DIN 51130: R11, ASTM 1677: 1.0/0.9)
Excellent drainage (DIN 51130: V10)

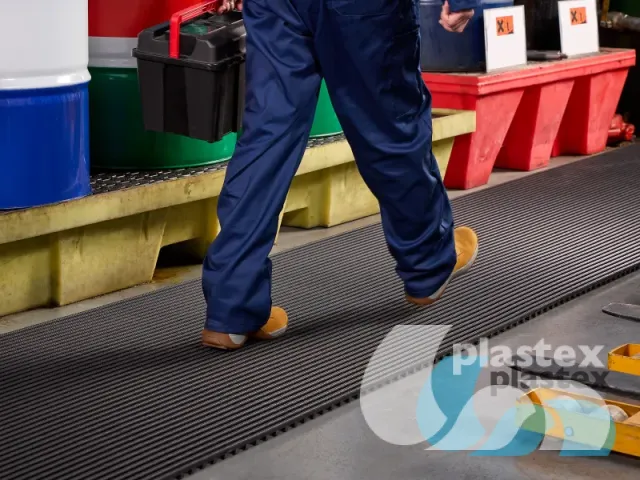

Chemical, oil and acid resistant
Boosts productivity
Contours to uneven surfaces
| Vynagrip | Vynagrip and Vynagrip Plus | Vynagrip Modules | |
| Height | 15mm (5/8") | 15mm (5/8") | 15mm (5/8") |
| Standard roll options | 5 x 0.6m (16'6" x 2') | 10 x 0.6m (33' x 2') | |
| 5 x 0.91m (16'6" x 3') | 10 x 0.91m (33' x 3') | ||
| 5 x 1.22m (16'6" x 4') | 10 x 1.22m (33' x 4') | ||
| Standard module options | 1.2 x 0.8m (4' x 2'5") | ||
| 1.5 x 1m (5' x 3') | |||
| Weight | 7.6kg/m2 (1.6lb/sq.ft) | 7.6kg/m2 (1.6lb/sq.ft) | 7.6kg/m2 (1.6lb/sq.ft) |
Surface modules are supplied with factory fitted PVC ramped edging to three sides.
| Acoustic | Excellent sound absorption. |
| Anti-fatigue | 10% reduction in fatigue (University of Hertfordshire study, 1997). |
| Chemical | Resistant to most acids, alkalines and oils. You can read more about specific chemical resistances by downloading this information sheet |
| Composition | Flexible Polyvinyl Chloride (PVC) |
| Electrical | BS 2782: Part 2 Method 230A. Insulation resistance > 2000M Ω Electric strength = 12,600 volts |
| Environment | Vynagrip and Vynagrip Plus is 100% recyclable. When manufactured in black, Vynagrip and Vynagrip Plus is made using our post industrial recycled material. The recycled content averages at least 30%, but we strive for 100% wherever possible. We don’t use any substances included in the SVHC list under REACH in any of our matting products. |
| Fire | EN ISO 13501-1:2007-Cfl-SI |
| Hygiene | Made from non-porous PVC that’s naturally resistant to bacteria growth. |
| Reversion | Thermoplastic shrinkage can result in size reductions up to 2%. This may be accelerated in hot environments. You can read more about the causes of shrinkage by downloading this information sheet. |
| Slip resistance | ASTM E303 Dry/Wet with lines along–lines across 87-104 /72-88 DIN 51130: R11, V10 |
| Thermal | Designed to function at temperatures from -23°C and up to +60°C. Slight size variation may occur at temperature extremes. |

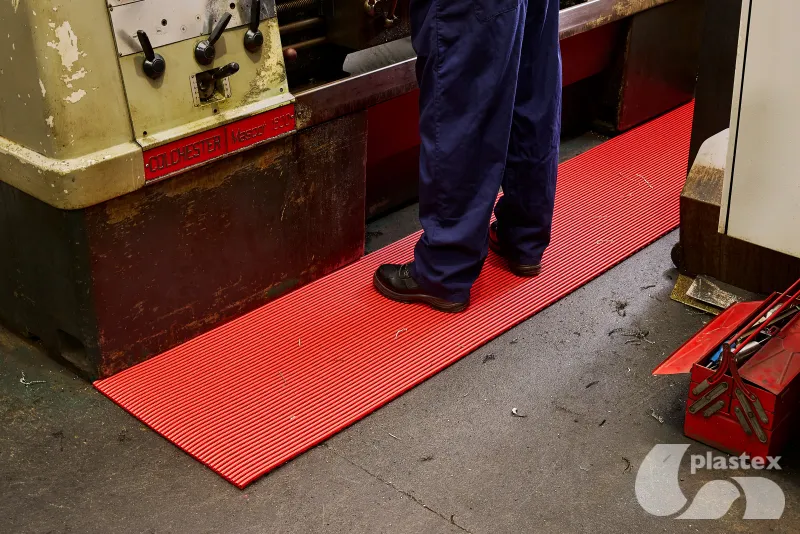

| UV light | Resistant to PVC degradation. The red colour isn't colourfast in direct sunlight. |
| Warranty | Four years. Visit our policies page for more information about warranties. |
Vynagrip and Vynagrip Plus
PVC edging (H: 14mm, W: 60mm)
Supplied in rolls of 10.1m (33’) length. One tube of cold welding paste recommended for every 10m of edging. Comes in black, dark grey, dark brown, holly green, Oxford blue, yellow. Size: 14mm x 60mm x 10.1m (9/16" x 2 1/2" x 33')
PVC edging (H: 14mm, W: 100mm)
Supplied in rolls of 10.1m (33’) length. One tube of cold welding paste recommended for every 10m of edging. Comes in black, dark grey and yellow. Size: 14mm x 100mm x 10.1m (9/16" x 3 3/4" x 33')
Aluminium edging (H: 14mm)
Supplied in sections of 2m (6'6") length with fixing screws and plugs. Comes in anodised aluminium and powder coated yellow. Size: 14mm x 45mm x 2m (5/8" x 1 13 /16" x 6'6")
Small floor hook (H: 14mm)
For securing sections of matting to the floor. Supplied in packs of 10 with screws and plugs
Large floor hooks (H: 14mm)
For securing sections of matting to the floor. Supplied in packs of 10 with screws and plugs
PVC snap track (H: 14mm)
Two-part snap track that can be welded together to join rolls end-to-end or side-to-side to cover large areas. We recommend one tube of cold welding paste for every 10m of edging. Comes in black and dark grey. Size: 14mm x 2.5m (9/16" x 8'2")
Connector clips: side-to-end (H: 14mm)
For joining sections of matting together side-to-end. Supplied in packs of 10
Connector clips: dual purpose (H: 14mm)
For joining sections of matting together side-to-side or end-to-end. Supplied in packs of 10
Vynagrip's one-piece construction means installation is simple

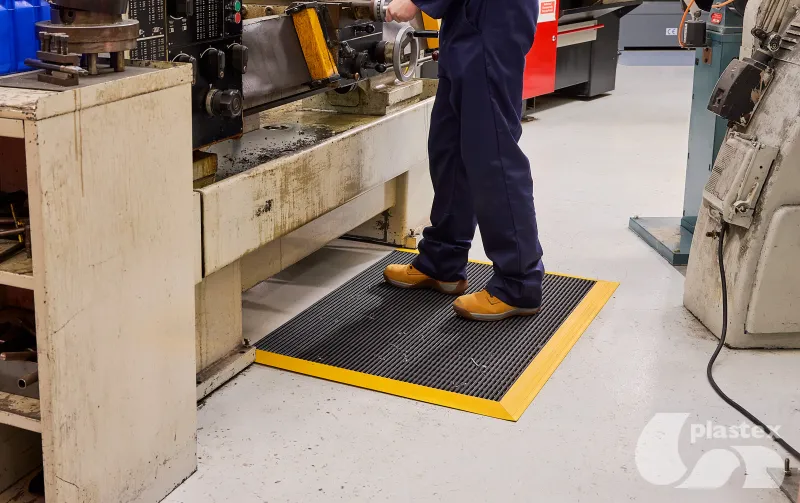

- Modules come with factory fitted edging around three sides and fit snugly against work stations
- Rolls are easy to cut on site
- Contours to uneven surfaces
Keeping Vynagrip looking good is easy
- Easy to move; simply roll or lift to clean
- No special cleaning tools needed
- Easy to wash down with a high pressure hose
Download our BIM objects in both Revit and IFC file types
Features
Diamond cut pattern
Two layer open-grid construction
Made from non-porous PVC
Proven anti-fatigue properties
Comes in 10m (33') rolls or ramped modules
Benefits
Certified slip resistant (DIN 51130: R11, ASTM 1677: 1.0/0.9)
Excellent drainage (DIN 51130: V10)
Chemical, oil and acid resistant
Boosts productivity
Contours to uneven surfaces
| Vynagrip | Vynagrip and Vynagrip Plus | Vynagrip Modules | |
| Height | 15mm (5/8") | 15mm (5/8") | 15mm (5/8") |
| Standard roll options | 5 x 0.6m (16'6" x 2') | 10 x 0.6m (33' x 2') | |
| 5 x 0.91m (16'6" x 3') | 10 x 0.91m (33' x 3') | ||
| 5 x 1.22m (16'6" x 4') | 10 x 1.22m (33' x 4') | ||
| Standard module options | 1.2 x 0.8m (4' x 2'5") | ||
| 1.5 x 1m (5' x 3') | |||
| Weight | 7.6kg/m2 (1.6lb/sq.ft) | 7.6kg/m2 (1.6lb/sq.ft) | 7.6kg/m2 (1.6lb/sq.ft) |
Surface modules are supplied with factory fitted PVC ramped edging to three sides.
| Acoustic | Excellent sound absorption. |
| Anti-fatigue | 10% reduction in fatigue (University of Hertfordshire study, 1997). |
| Chemical | Resistant to most acids, alkalines and oils. You can read more about specific chemical resistances by downloading this information sheet |
| Composition | Flexible Polyvinyl Chloride (PVC) |
| Electrical | BS 2782: Part 2 Method 230A. Insulation resistance > 2000M Ω Electric strength = 12,600 volts |
| Environment | Vynagrip and Vynagrip Plus is 100% recyclable. When manufactured in black, Vynagrip and Vynagrip Plus is made using our post industrial recycled material. The recycled content averages at least 30%, but we strive for 100% wherever possible. We don’t use any substances included in the SVHC list under REACH in any of our matting products. |
| Fire | EN ISO 13501-1:2007-Cfl-SI |
| Hygiene | Made from non-porous PVC that’s naturally resistant to bacteria growth. |
| Reversion | Thermoplastic shrinkage can result in size reductions up to 2%. This may be accelerated in hot environments. You can read more about the causes of shrinkage by downloading this information sheet. |
| Slip resistance | ASTM E303 Dry/Wet with lines along–lines across 87-104 /72-88 DIN 51130: R11, V10 |
| Thermal | Designed to function at temperatures from -23°C and up to +60°C. Slight size variation may occur at temperature extremes. |
| UV light | Resistant to PVC degradation. The red colour isn't colourfast in direct sunlight. |
| Warranty | Four years. Visit our policies page for more information about warranties. |
Vynagrip and Vynagrip Plus
PVC edging (H: 14mm, W: 60mm)
Supplied in rolls of 10.1m (33’) length. One tube of cold welding paste recommended for every 10m of edging. Comes in black, dark grey, dark brown, holly green, Oxford blue, yellow. Size: 14mm x 60mm x 10.1m (9/16" x 2 1/2" x 33')
PVC edging (H: 14mm, W: 100mm)
Supplied in rolls of 10.1m (33’) length. One tube of cold welding paste recommended for every 10m of edging. Comes in black, dark grey and yellow. Size: 14mm x 100mm x 10.1m (9/16" x 3 3/4" x 33')
Aluminium edging (H: 14mm)
Supplied in sections of 2m (6'6") length with fixing screws and plugs. Comes in anodised aluminium and powder coated yellow. Size: 14mm x 45mm x 2m (5/8" x 1 13 /16" x 6'6")
Small floor hook (H: 14mm)
For securing sections of matting to the floor. Supplied in packs of 10 with screws and plugs
Large floor hooks (H: 14mm)
For securing sections of matting to the floor. Supplied in packs of 10 with screws and plugs
PVC snap track (H: 14mm)
Two-part snap track that can be welded together to join rolls end-to-end or side-to-side to cover large areas. We recommend one tube of cold welding paste for every 10m of edging. Comes in black and dark grey. Size: 14mm x 2.5m (9/16" x 8'2")
Connector clips: side-to-end (H: 14mm)
For joining sections of matting together side-to-end. Supplied in packs of 10
Connector clips: dual purpose (H: 14mm)
For joining sections of matting together side-to-side or end-to-end. Supplied in packs of 10
Vynagrip's one-piece construction means installation is simple
- Modules come with factory fitted edging around three sides and fit snugly against work stations
- Rolls are easy to cut on site
- Contours to uneven surfaces
Keeping Vynagrip looking good is easy
- Easy to move; simply roll or lift to clean
- No special cleaning tools needed
- Easy to wash down with a high pressure hose
Download our BIM objects in both Revit and IFC file types
