Trackgrip
Wide-grid walkway matting specifically designed for greasy or grimy environments.
With its two-layer construction, extra-wide grid and excellent drainage, Trackgrip is the perfect defense against grease, grime and oil.
Made from non-porous PVC with a two-layer construction, Trackgrip is impermeable to fluids and provides excellent drainage, making it ideal for environments where spillages are likely.

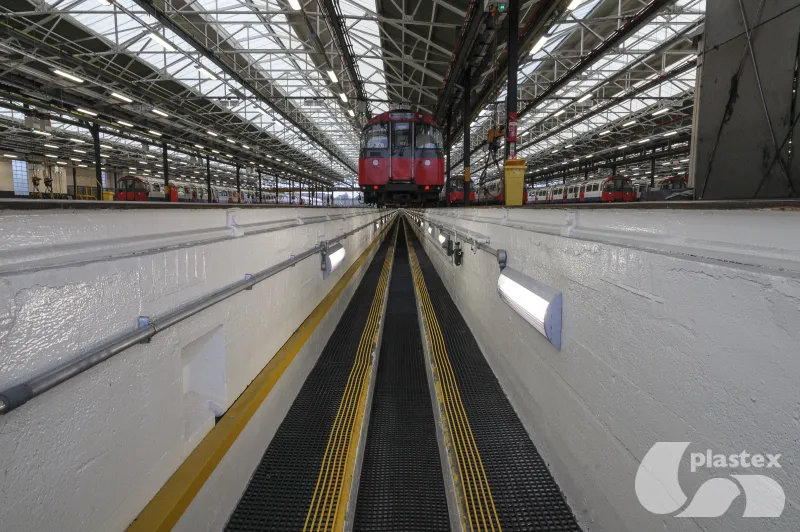

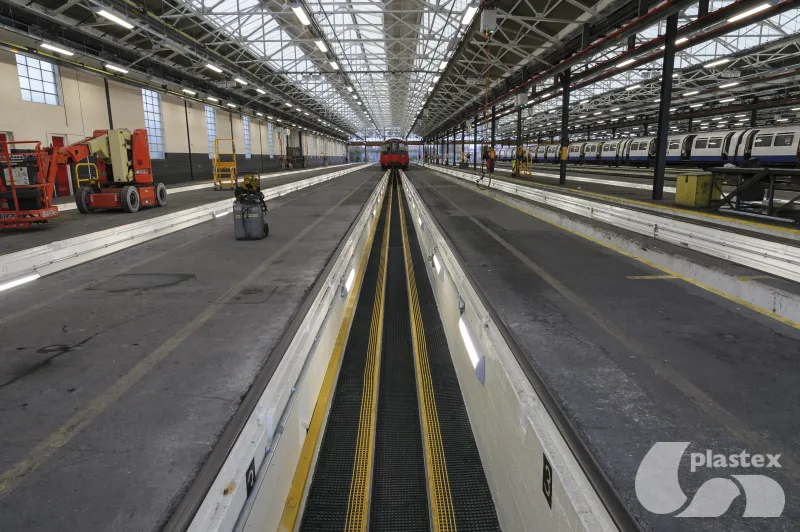

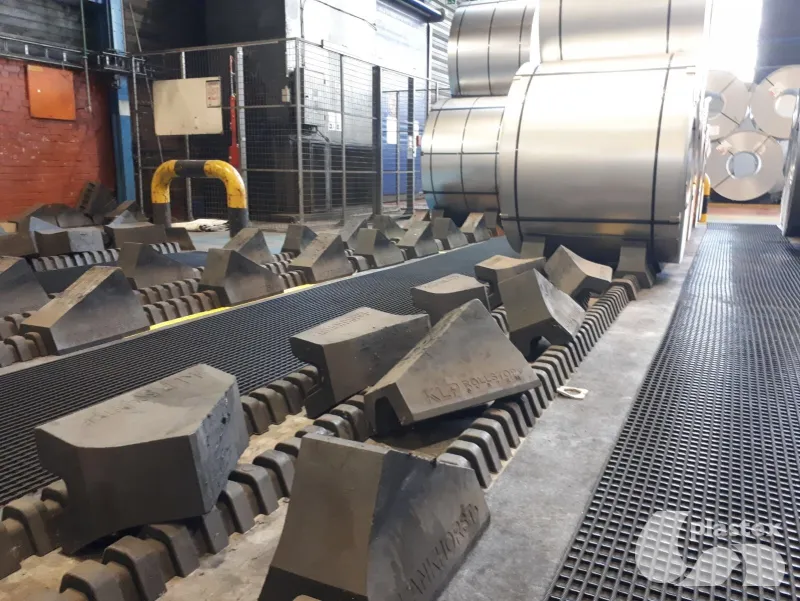

Its diamond-cut pattern provides the highest slip resistance, and the wide grid means it's perfect for environments where oils and greasy materials are present, like railway maintenance areas, construction sites and processing plants.
Flexible format
Comes in 10m (33') rolls
Quick installation
Roll out and cut to fit on site; contours to uneven surfaces
Simple to maintain
Easy to clean with a high pressure hose
Features
Diamond cut pattern
Two-layer construction and extra-wide spacing
Made from non-porous PVC
Comes in 10m (33') rolls
Made from flexible PVC
Benefits
Certified slip resistant (DIN 51130: R11 ASTM 1677: 0.9/0.7)
Excellent drainage (DIN 51130: V10)
Resistant to chemicals, acids, oils
Quick to install
Easy to clean with a high pressure hose
| Trackgrip | Trackgrip Plus | |
| Height | 15mm (5/8") | 15mm (5/8") |
| Standard roll options | 10 x 0.6m (33' x 2’) | 10 x 0.6m (33' x 2’) |
| 10 x 0.91m (33' x 3’) | 10 x 0.91m (33' x 3’) | |
| 10 x 1.22m (33' x 4') | 10 x 1.22m (33' x 4') | |
| Weight | 4.6kg/m2 (0.94lb/sq.ft) | 4.6kg/m2 (0.94lb/sq.ft) |
| Acoustic | Excellent sound absorption. |
| Chemical | Resistant to most acids, alkalines and oils. You can read more about specific chemical resistances by downloading this information sheet. |
| Composition | Flexible Polyvinyl Chloride (PVC). |
| Environment | Trackgrip is 100% recyclable. When manufactured in black, it’s made using our post industrial recycled material. The recycled content averages at least 30%, but we strive for 100% wherever possible. We don’t use any substances included in the SVHC list under REACH in any of our matting products. |
| Hygiene | Made from non-porous PVC that’s naturally resistant to bacteria growth. |
| Reversion | Thermoplastic shrinkage can result in size reductions up to 2%. This may be accelerated in hot environments. You can read more about the causes of shrinkage by downloading this information sheet. |
| Slip resistance | DIN 51130: R11, V10 |
| Thermal | Designed to function at temperatures from -23°C and up to +60C. Slight size variation may occur at temperature extremes. |
| UV light | Resistant to PVC degradation. |
| Warranty | Three years. Visit our policies page for more information about warranties. |
PVC edging (H: 14mm, W: 60mm)
Supplied in rolls of 10.1m (33’) length. One tube of cold welding paste recommended for every 10m of edging. Comes in black, dark grey, dark brown, holly green, Oxford blue, yellow. Size: 14mm x 60mm x 10.1m (9/16" x 2 1/2" x 33')
Aluminium edging (H: 14mm)
Supplied in sections of 2m (6'6") length with fixing screws and plugs. Comes in anodised aluminium and powder coated yellow. Size: 14mm x 45mm x 2m (5/8" x 1 13 /16" x 6'6")
Small floor hook (H: 14mm)
For securing sections of matting to the floor. Supplied in packs of 20 with screws and plugs.
CONNECTOR CLIPS: DUAL PURPOSE (H: 14MM)
For joining sections of matting together side-to-side or end-to-end. Supplied in packs of 10
Trackgrip's one-piece construction means installation is simple
- Comes in 10m rolls, ideal for covering large areas
- Quick and easy to cut to fit on site
- No special tools needed
- Contours to uneven surfaces
Keeping Trackgrip looking good is easy
- Easy to handle
- Roll or lift to clean
- Simply clean with a high pressure hose
Features
Diamond cut pattern
Two-layer construction and extra-wide spacing
Made from non-porous PVC
Comes in 10m (33') rolls
Made from flexible PVC
Benefits
Certified slip resistant (DIN 51130: R11 ASTM 1677: 0.9/0.7)
Excellent drainage (DIN 51130: V10)
Resistant to chemicals, acids, oils
Quick to install
Easy to clean with a high pressure hose
| Trackgrip | Trackgrip Plus | |
| Height | 15mm (5/8") | 15mm (5/8") |
| Standard roll options | 10 x 0.6m (33' x 2’) | 10 x 0.6m (33' x 2’) |
| 10 x 0.91m (33' x 3’) | 10 x 0.91m (33' x 3’) | |
| 10 x 1.22m (33' x 4') | 10 x 1.22m (33' x 4') | |
| Weight | 4.6kg/m2 (0.94lb/sq.ft) | 4.6kg/m2 (0.94lb/sq.ft) |
| Acoustic | Excellent sound absorption. |
| Chemical | Resistant to most acids, alkalines and oils. You can read more about specific chemical resistances by downloading this information sheet. |
| Composition | Flexible Polyvinyl Chloride (PVC). |
| Environment | Trackgrip is 100% recyclable. When manufactured in black, it’s made using our post industrial recycled material. The recycled content averages at least 30%, but we strive for 100% wherever possible. We don’t use any substances included in the SVHC list under REACH in any of our matting products. |
| Hygiene | Made from non-porous PVC that’s naturally resistant to bacteria growth. |
| Reversion | Thermoplastic shrinkage can result in size reductions up to 2%. This may be accelerated in hot environments. You can read more about the causes of shrinkage by downloading this information sheet. |
| Slip resistance | DIN 51130: R11, V10 |
| Thermal | Designed to function at temperatures from -23°C and up to +60C. Slight size variation may occur at temperature extremes. |
| UV light | Resistant to PVC degradation. |
| Warranty | Three years. Visit our policies page for more information about warranties. |
PVC edging (H: 14mm, W: 60mm)
Supplied in rolls of 10.1m (33’) length. One tube of cold welding paste recommended for every 10m of edging. Comes in black, dark grey, dark brown, holly green, Oxford blue, yellow. Size: 14mm x 60mm x 10.1m (9/16" x 2 1/2" x 33')
Aluminium edging (H: 14mm)
Supplied in sections of 2m (6'6") length with fixing screws and plugs. Comes in anodised aluminium and powder coated yellow. Size: 14mm x 45mm x 2m (5/8" x 1 13 /16" x 6'6")
Small floor hook (H: 14mm)
For securing sections of matting to the floor. Supplied in packs of 20 with screws and plugs.
CONNECTOR CLIPS: DUAL PURPOSE (H: 14MM)
For joining sections of matting together side-to-side or end-to-end. Supplied in packs of 10
Trackgrip's one-piece construction means installation is simple
- Comes in 10m rolls, ideal for covering large areas
- Quick and easy to cut to fit on site
- No special tools needed
- Contours to uneven surfaces
Keeping Trackgrip looking good is easy
- Easy to handle
- Roll or lift to clean
- Simply clean with a high pressure hose
