Frontrunner XT
Extra slip-resistant indoor and outdoor entrance floor mat designed to combat large amounts of dirt and debris.
Frontrunner XT is a heavy-duty entrance mat designed to tackle large amounts of dirt and debris.
The mat’s aggressive deep-etched tread scrapes shoes and wheels clean, while the open grid collects and traps dirt, preventing unwanted debris from being tracked inside buildings.
Wheel-proof and heel-proof, Frontrunner XT is certified slip resistant and can be used as an indoor or outdoor entrance floor mat. This makes it suitable for every environment and application, whether you need an internal commercial entrance mat for a busy workplace or a heavy-duty outdoor entrance mat for industrial use.
Purpose designed to fit seamlessly with all well depths, Frontrunner XT can be installed surface-mounted or recessed and contours effortlessly to the subfloor.
Seamless integration
Choose from rolls in standard widths and 10m (33') lengths or order a custom size. Can be used as an interior or exterior matting.
Simple installation
One-piece construction means you can cut to fit on site, with no previous site visits needed.
Easy to maintain
Simply roll or lift to clean, no special tools needed
Features
Diamond cut pattern
Two layer, open-grid construction
Close mesh grid
Made from flexible PVC
Comes in 10m (33') rolls
Benefits
Certified slip resistant (DIN 51130: R12)
Excellent drainage (DIN 51130: V10)
Wheel- and heel-proof
Easy to cut on site, contours to uneven surfaces
Seamless installation
| Frontrunner XT | Low Profile | |
| Height | 14mm (9/16") | 10.5mm (13/32") |
| Standard roll options | 10 x 0.6m (33' x 2’) | 10 x 0.6m (33' x 2') |
| 10 x 0.91m (33' x 3’) | 10 x 0.91m (33' x 3') | |
| 5 x 1.2m (16'6" x 4’) | 5 x 1.2m (16'6" x 4') | |
| Weight | 10.5kg/m2 (2lbs/sq.ft) | 8.7kg/m2 (1.8lb/sq.ft) |
| Acoustic | Excellent sound absorption. |
| Chemical | Resistant to most acids, alkalines and oils. You can read more about specific chemical resistances by downloading this information sheet. |
| Composition | Flexible Polyvinyl Chloride (PVC). |
| Environment | Frontrunner XT is 100% recyclable. We don’t use any substances included in the SVHC list under REACH in any of our matting products. |
| Fire | EN ISO 13501-1:2007-Bfl-S1, ASTM E648, Class 1 |
| Reversion | Thermoplastic shrinkage can result in size reductions up to 2%. This may be accelerated in hot environments. You can read more about the causes of shrinkage by downloading this information sheet. |
| Slip resistance | DIN 51130: R12, V10 DIN 51130: R11, V10 (Frontrunner XT Low Profile) ASTM E303 Dry/Wet with lines along–lines across 77-94 / 58-71 |
| Thermal | Designed to function at temperatures from -23°C and up to +60°C. Slight size variation may occur at temperature extremes. |
| UV light | Resistant to PVC degradation. |
| Warranty | Frontrunner XT: four years. XT Low Profile: Two years. Visit our policies page for more information about warranties. |

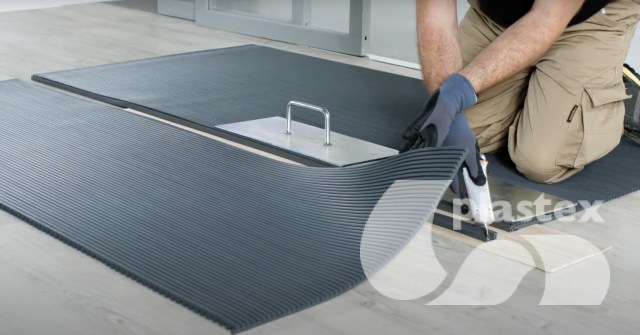

For surface-mounted installations: Frontrunner XT

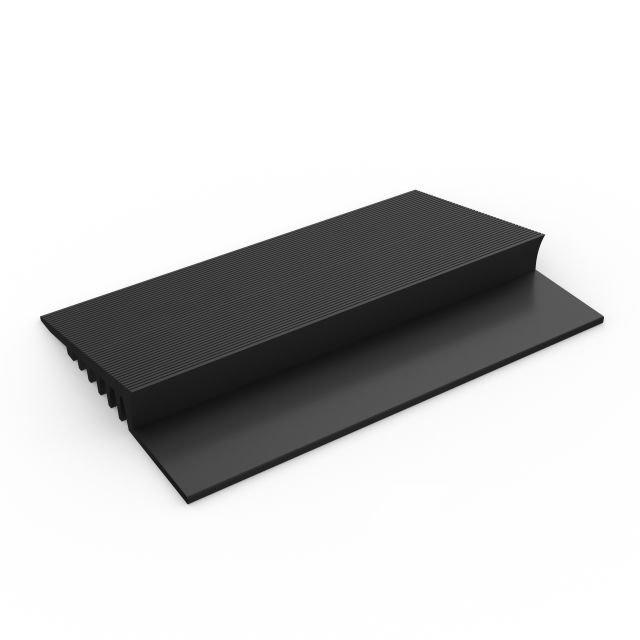

PVC edging (H: 14mm, W: 60mm)
Supplied in rolls of 10.1m (33’) length. One tube of cold welding paste recommended for every 10m of edging. Comes in black, dark grey, dark brown, holly green, Oxford blue, yellow. Size: 14mm x 60mm x 10.1m (9/16" x 2 1/2" x 33')

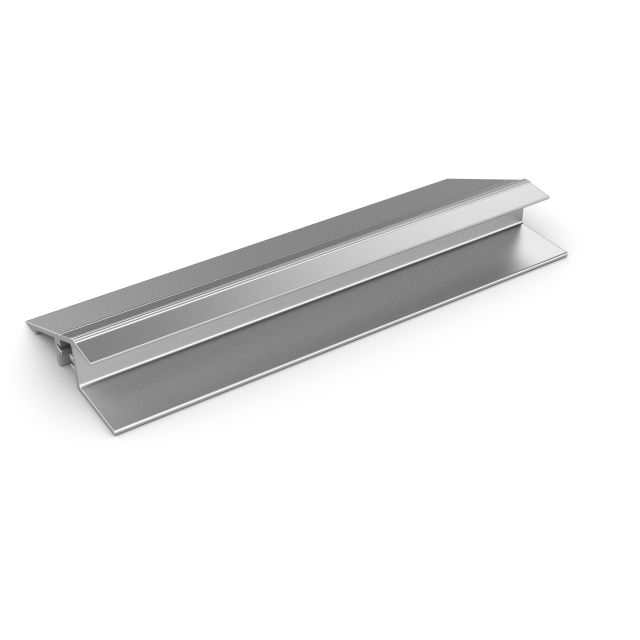

Aluminium edging (H: 14mm)
Supplied in sections of 2m (6'6") length with fixing screws and plugs. Comes in anodised aluminium and powder coated yellow. Size: 14mm x 45mm x 2m (9/16" x 1 13 /16" x 6'6")

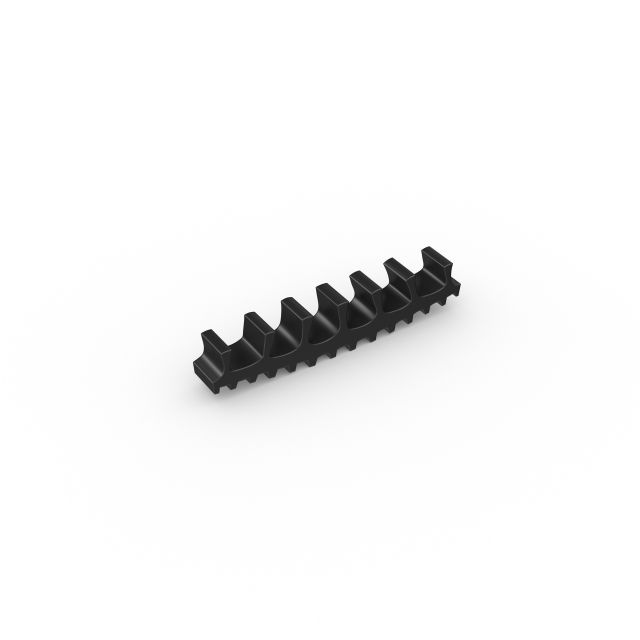

Connector clips: side-to-side (H: 14mm)
For joining sections of matting together side-to-side. Supplied in packs of 10

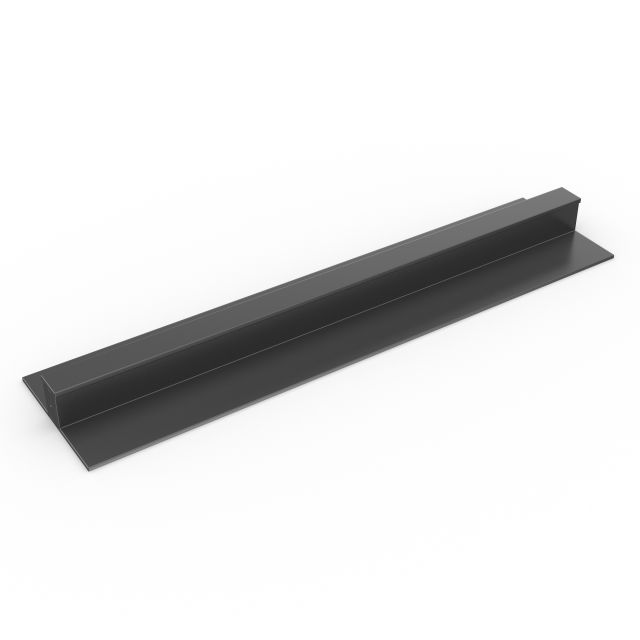

PVC snap track (H: 14mm)
Two-part snap track that can be welded together to join rolls end-to-end or side-to-side to cover large areas. We recommend one tube of cold welding paste for every 10m of edging. Comes in black and dark grey. Size: 14mm x 2.5m (9/16" x 8'2")
For recessed installations: Frontrunner XT
H section (H: 14 mm)
If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a H section to secure the different sections together. Supplied in sections of 3m (10') length, with fixing screws and plugs. Comes in black, with mat insert colour specified. Size: 14mm x 13mm (9/16" x 1/2").
R frame (H: 14mm)
You'll need these to secure the matting on the left-to-right edges. Supplied in sections of 3m (10') length with fixing screws and plugs. Comes in anodised aluminium, powder coated dark grey and black. Size: 14mm x 12mm (9/16" x 15/32")

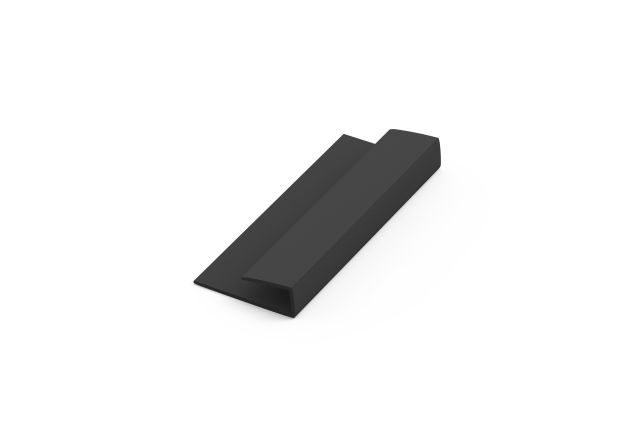

J frame (H: 18mm)
Installing Frontrunner against a wall? You'll need a J frame to secure the matting on the left-to-right edges. Supplied in sections of 3m (10') length. Comes in dark grey and black. Size: 18mm x 60mm (11/16" x 2 3/8")

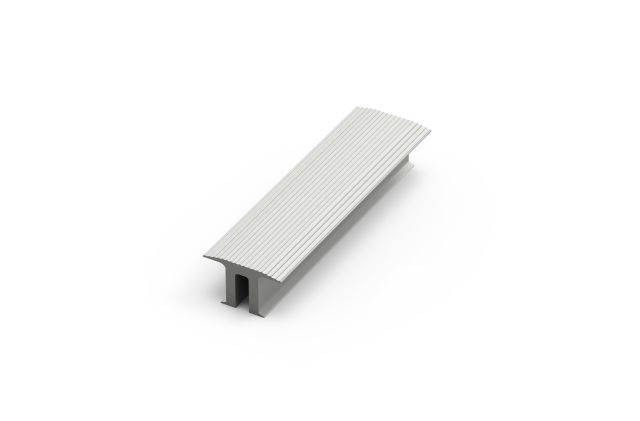

T frame (H: 14mm)
You can use a T frame (27mm) to divide the matting into sections left-to-right – this makes it easier to lift and clean. Supplied in sections of 3m (10') length with fixing screws and plugs. Comes in anodised aluminium, powder coated dark grey and black

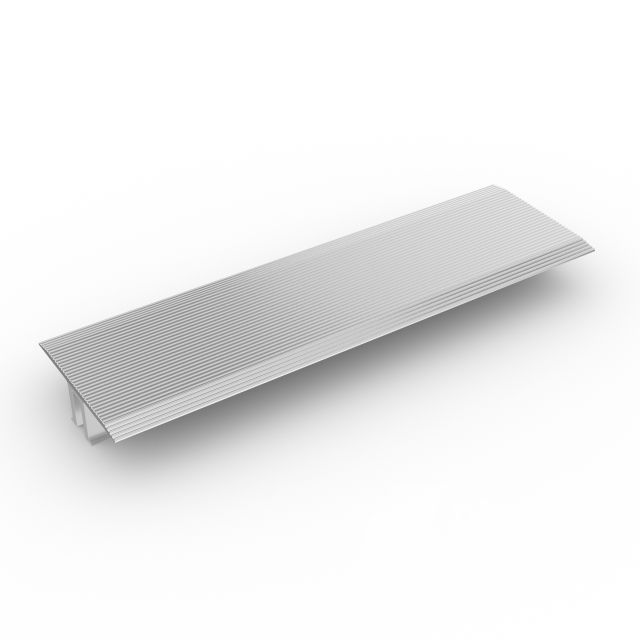

TL frame (H: 14mm)
You can use a T/L frame (55mm) to divide the matting into sections left-to-right – this makes it easier to lift and clean. Supplied in sections of 3m (10') length with fixing screws and plugs. Comes in anodised aluminium

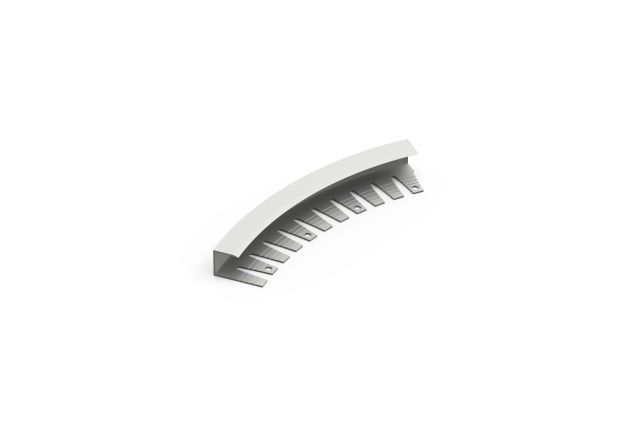

L frame (H: 15mm)
Installing around a circular door or non rectangular space? You'll need a L frame to secure the matting. Size: 15mm x 2.7m length (5/8" x 8')
U section (H: 14mm)
If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a U section to secure the different sections together. Supplied in sections of 3m (10') length, with fixing screws and plugs. Comes in anodised aluminium, powder coated dark grey and black. Size: 14mm x 19mm (9/16" x 3/4")
For surface-mounted installations: Frontrunner XT Low Profile

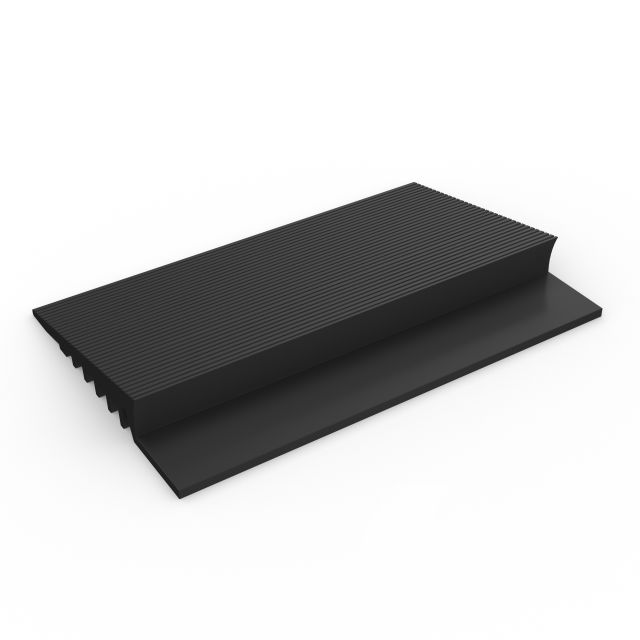

PVC edging (H: 10mm, W: 50mm)
Supplied in rolls of 10.1m (33’) length. One tube of cold welding paste recommended for every 10m of edging. Comes in black and dark grey. Size: 10mm x 50mm x 10.1m (3/8" x 2" x 33')

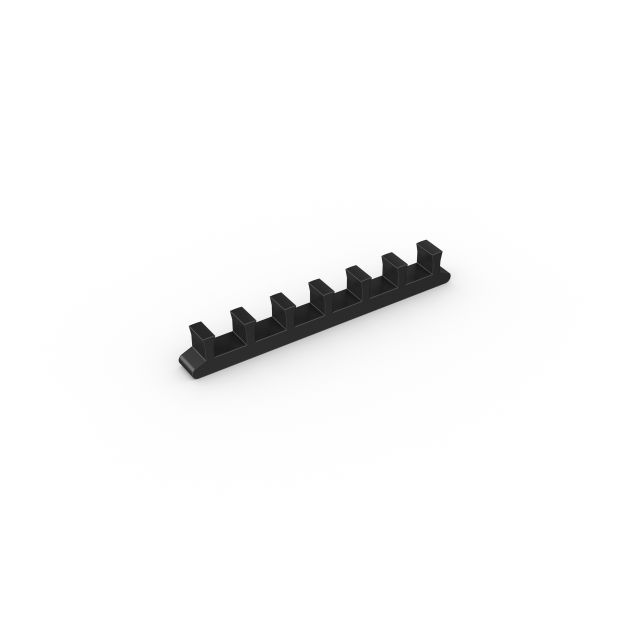

Connector clips: side-to-side (H: 10mm)
For joining sections of low profile matting together side-to-side. Supplied in packs of 10
PVC snap track (H: 10.5mm)
Two-part snap track that can be welded together to join rolls end-to-end or side-to-side to cover large areas. We recommend one tube of cold welding paste for every 10m of edging. Comes in dark grey. Size: 10.5mm x 2.5m (13/32" x 8'2")
For recessed installations: Frontrunner XT Low Profile

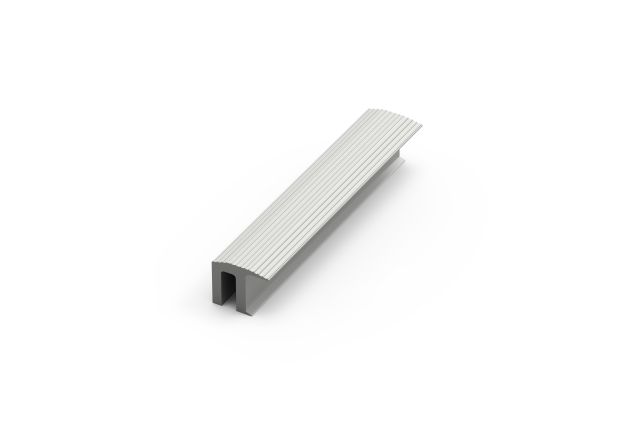

R frame (H: 10mm)
You'll need these to secure the matting on the left-to-right edges. Supplied in sections of 3m (10') length with fixing screws and plugs. Comes in anodised aluminium, powder coated dark grey and black. Size: 10mm x 12mm (3/8" x 15/32")

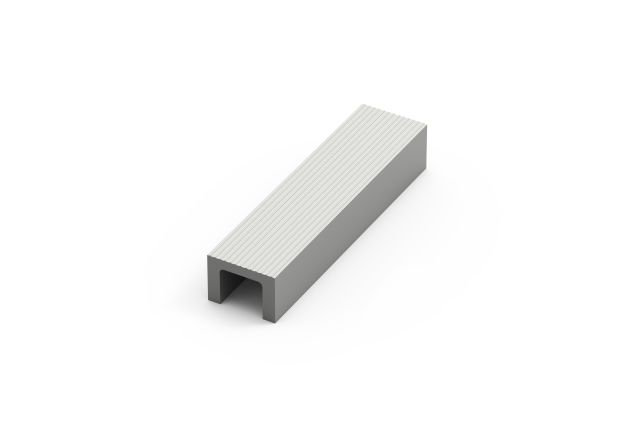

U section (H: 10mm)
If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a U section to secure the different sections together. Supplied in sections of 3m (10') length, with fixing screws and plugs. Comes in anodised aluminium, powder coated dark grey and black. Size: 10mm x 18mm (3/8" x 11/16")

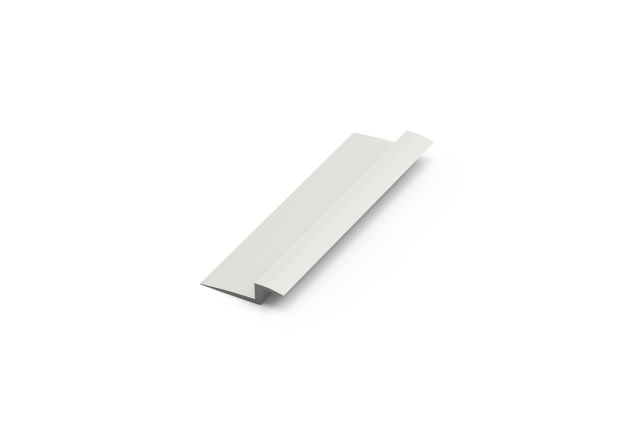

Z frame (H: 10mm)
Installing matting next to ceramic tiles? You'll need a Z frame to secure the matting. Supplied in sections of 3.6m (12') length with fixing screws and plugs. Comes in anodised aluminium. Size: 10mm x 24mm (3/8" x 15/16")

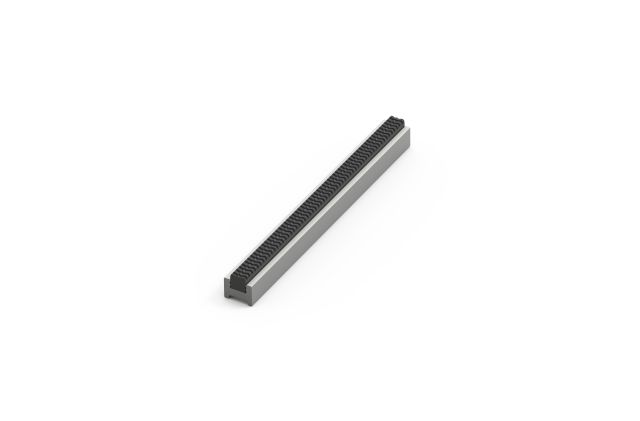

H section (H: 10 mm)
If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a H section to secure the different sections together. Supplied in sections of 3.6m (12') length, with fixing screws and plugs. Comes in black, with mat insert colour specified. Size: 10mm x 13mm (3/8" x 1/2").
Frontrunner XT's one-piece construction means installation is simple
- No special tools or previous site visits
- Integrates with all internal floor coverings
- Fits with different well depths
- Contours to the floor

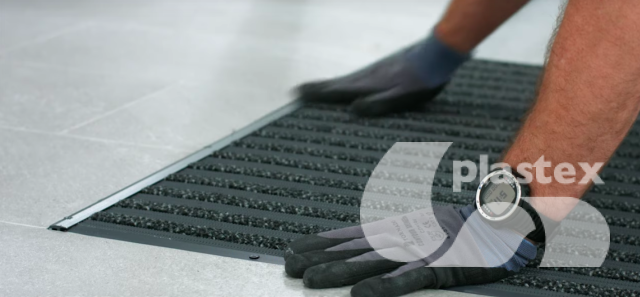

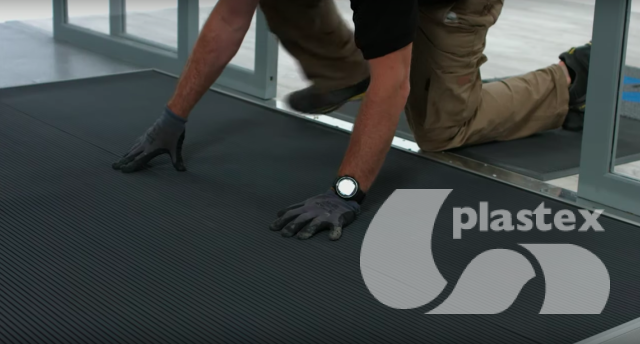

Watch the videos below for step-by-step installation guides, or download the recessed entrance matting installation instructions and the surface-mounted installation instructions.

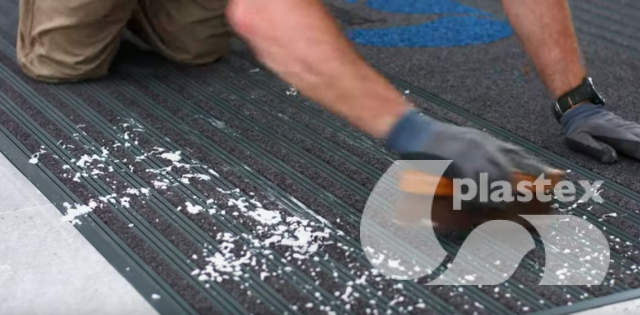

Keeping Frontrunner XT looking good is easy
- Reduces cleaning intervals
- Simply roll or lift to clean
- No special tools needed
- Easy to vacuum or clean with a pressure hose
Watch our step-by-step guide to daily, weekly and monthly cleaning below or download the cleaning instructions here.
Download our BIM objects in both Revit and IFC file types
Features
Diamond cut pattern
Two layer, open-grid construction
Close mesh grid
Made from flexible PVC
Comes in 10m (33') rolls
Benefits
Certified slip resistant (DIN 51130: R12)
Excellent drainage (DIN 51130: V10)
Wheel- and heel-proof
Easy to cut on site, contours to uneven surfaces
Seamless installation
| Frontrunner XT | Low Profile | |
| Height | 14mm (9/16") | 10.5mm (13/32") |
| Standard roll options | 10 x 0.6m (33' x 2’) | 10 x 0.6m (33' x 2') |
| 10 x 0.91m (33' x 3’) | 10 x 0.91m (33' x 3') | |
| 5 x 1.2m (16'6" x 4’) | 5 x 1.2m (16'6" x 4') | |
| Weight | 10.5kg/m2 (2lbs/sq.ft) | 8.7kg/m2 (1.8lb/sq.ft) |
| Acoustic | Excellent sound absorption. |
| Chemical | Resistant to most acids, alkalines and oils. You can read more about specific chemical resistances by downloading this information sheet. |
| Composition | Flexible Polyvinyl Chloride (PVC). |
| Environment | Frontrunner XT is 100% recyclable. We don’t use any substances included in the SVHC list under REACH in any of our matting products. |
| Fire | EN ISO 13501-1:2007-Bfl-S1, ASTM E648, Class 1 |
| Reversion | Thermoplastic shrinkage can result in size reductions up to 2%. This may be accelerated in hot environments. You can read more about the causes of shrinkage by downloading this information sheet. |
| Slip resistance | DIN 51130: R12, V10 DIN 51130: R11, V10 (Frontrunner XT Low Profile) ASTM E303 Dry/Wet with lines along–lines across 77-94 / 58-71 |
| Thermal | Designed to function at temperatures from -23°C and up to +60°C. Slight size variation may occur at temperature extremes. |
| UV light | Resistant to PVC degradation. |
| Warranty | Frontrunner XT: four years. XT Low Profile: Two years. Visit our policies page for more information about warranties. |
For surface-mounted installations: Frontrunner XT
PVC edging (H: 14mm, W: 60mm)
Supplied in rolls of 10.1m (33’) length. One tube of cold welding paste recommended for every 10m of edging. Comes in black, dark grey, dark brown, holly green, Oxford blue, yellow. Size: 14mm x 60mm x 10.1m (9/16" x 2 1/2" x 33')
Aluminium edging (H: 14mm)
Supplied in sections of 2m (6'6") length with fixing screws and plugs. Comes in anodised aluminium and powder coated yellow. Size: 14mm x 45mm x 2m (9/16" x 1 13 /16" x 6'6")
Connector clips: side-to-side (H: 14mm)
For joining sections of matting together side-to-side. Supplied in packs of 10
PVC snap track (H: 14mm)
Two-part snap track that can be welded together to join rolls end-to-end or side-to-side to cover large areas. We recommend one tube of cold welding paste for every 10m of edging. Comes in black and dark grey. Size: 14mm x 2.5m (9/16" x 8'2")
For recessed installations: Frontrunner XT
H section (H: 14 mm)
If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a H section to secure the different sections together. Supplied in sections of 3m (10') length, with fixing screws and plugs. Comes in black, with mat insert colour specified. Size: 14mm x 13mm (9/16" x 1/2").
R frame (H: 14mm)
You'll need these to secure the matting on the left-to-right edges. Supplied in sections of 3m (10') length with fixing screws and plugs. Comes in anodised aluminium, powder coated dark grey and black. Size: 14mm x 12mm (9/16" x 15/32")
J frame (H: 18mm)
Installing Frontrunner against a wall? You'll need a J frame to secure the matting on the left-to-right edges. Supplied in sections of 3m (10') length. Comes in dark grey and black. Size: 18mm x 60mm (11/16" x 2 3/8")
T frame (H: 14mm)
You can use a T frame (27mm) to divide the matting into sections left-to-right – this makes it easier to lift and clean. Supplied in sections of 3m (10') length with fixing screws and plugs. Comes in anodised aluminium, powder coated dark grey and black
TL frame (H: 14mm)
You can use a T/L frame (55mm) to divide the matting into sections left-to-right – this makes it easier to lift and clean. Supplied in sections of 3m (10') length with fixing screws and plugs. Comes in anodised aluminium
L frame (H: 15mm)
Installing around a circular door or non rectangular space? You'll need a L frame to secure the matting. Size: 15mm x 2.7m length (5/8" x 8')
U section (H: 14mm)
If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a U section to secure the different sections together. Supplied in sections of 3m (10') length, with fixing screws and plugs. Comes in anodised aluminium, powder coated dark grey and black. Size: 14mm x 19mm (9/16" x 3/4")
For surface-mounted installations: Frontrunner XT Low Profile
PVC edging (H: 10mm, W: 50mm)
Supplied in rolls of 10.1m (33’) length. One tube of cold welding paste recommended for every 10m of edging. Comes in black and dark grey. Size: 10mm x 50mm x 10.1m (3/8" x 2" x 33')
Connector clips: side-to-side (H: 10mm)
For joining sections of low profile matting together side-to-side. Supplied in packs of 10
PVC snap track (H: 10.5mm)
Two-part snap track that can be welded together to join rolls end-to-end or side-to-side to cover large areas. We recommend one tube of cold welding paste for every 10m of edging. Comes in dark grey. Size: 10.5mm x 2.5m (13/32" x 8'2")
For recessed installations: Frontrunner XT Low Profile
R frame (H: 10mm)
You'll need these to secure the matting on the left-to-right edges. Supplied in sections of 3m (10') length with fixing screws and plugs. Comes in anodised aluminium, powder coated dark grey and black. Size: 10mm x 12mm (3/8" x 15/32")
U section (H: 10mm)
If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a U section to secure the different sections together. Supplied in sections of 3m (10') length, with fixing screws and plugs. Comes in anodised aluminium, powder coated dark grey and black. Size: 10mm x 18mm (3/8" x 11/16")
Z frame (H: 10mm)
Installing matting next to ceramic tiles? You'll need a Z frame to secure the matting. Supplied in sections of 3.6m (12') length with fixing screws and plugs. Comes in anodised aluminium. Size: 10mm x 24mm (3/8" x 15/16")
H section (H: 10 mm)
If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a H section to secure the different sections together. Supplied in sections of 3.6m (12') length, with fixing screws and plugs. Comes in black, with mat insert colour specified. Size: 10mm x 13mm (3/8" x 1/2").
Frontrunner XT's one-piece construction means installation is simple
- No special tools or previous site visits
- Integrates with all internal floor coverings
- Fits with different well depths
- Contours to the floor
Watch the videos below for step-by-step installation guides, or download the recessed entrance matting installation instructions and the surface-mounted installation instructions.
Keeping Frontrunner XT looking good is easy
- Reduces cleaning intervals
- Simply roll or lift to clean
- No special tools needed
- Easy to vacuum or clean with a pressure hose
Watch our step-by-step guide to daily, weekly and monthly cleaning below or download the cleaning instructions here.
Download our BIM objects in both Revit and IFC file types
