Flexigrid
Heavy-tread matting with an aggressive surface for industrial environments.

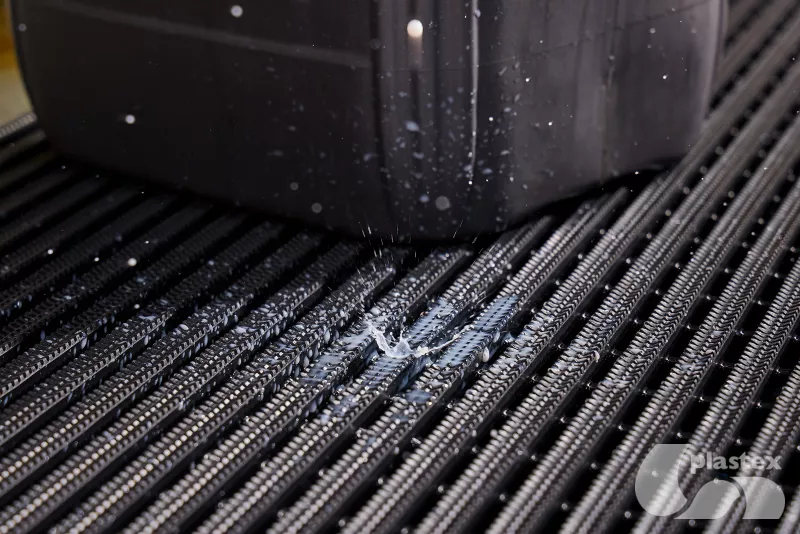

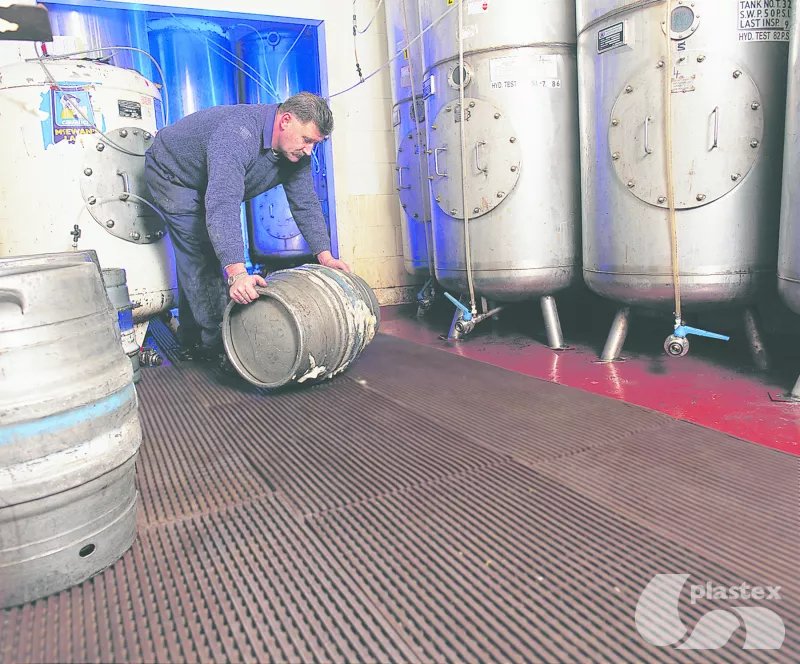

An extra-aggressive, heavy-duty industrial mat capable of withstanding even the toughest workplaces, Flexigrid is specifically designed for workplaces where spillages, debris and metal shards are an issue.

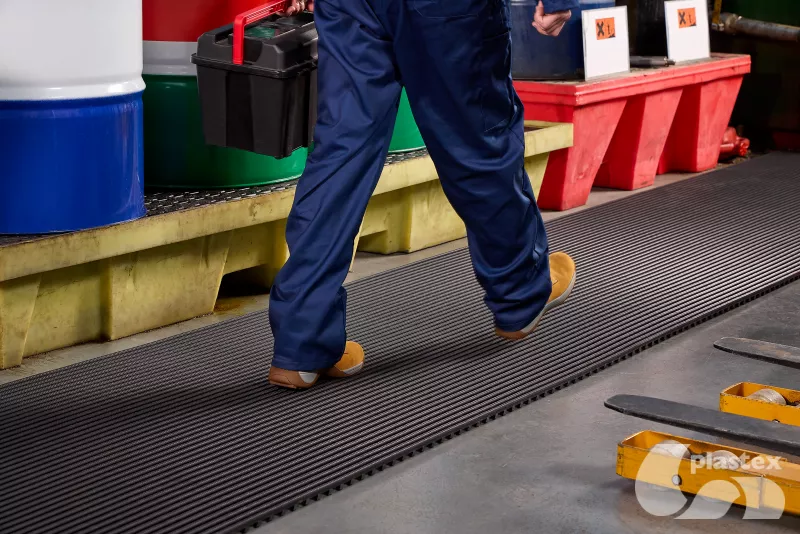

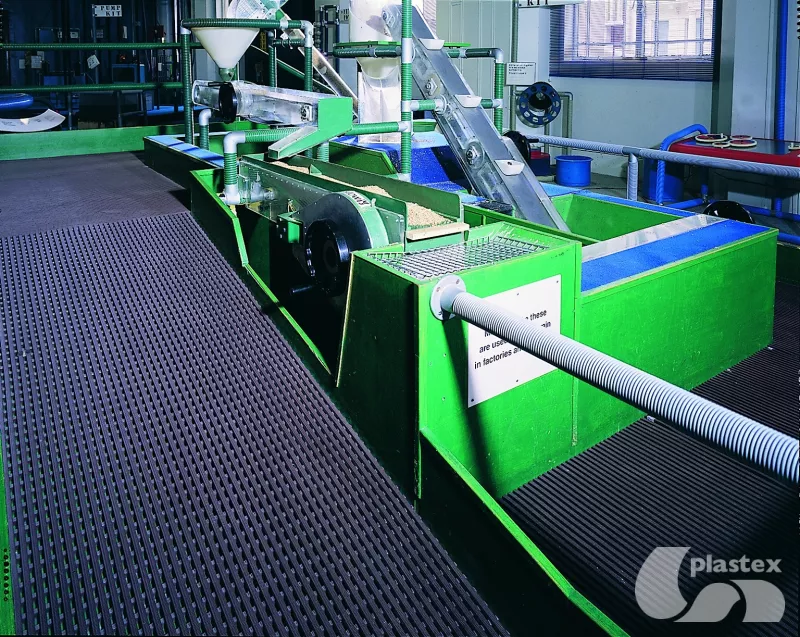

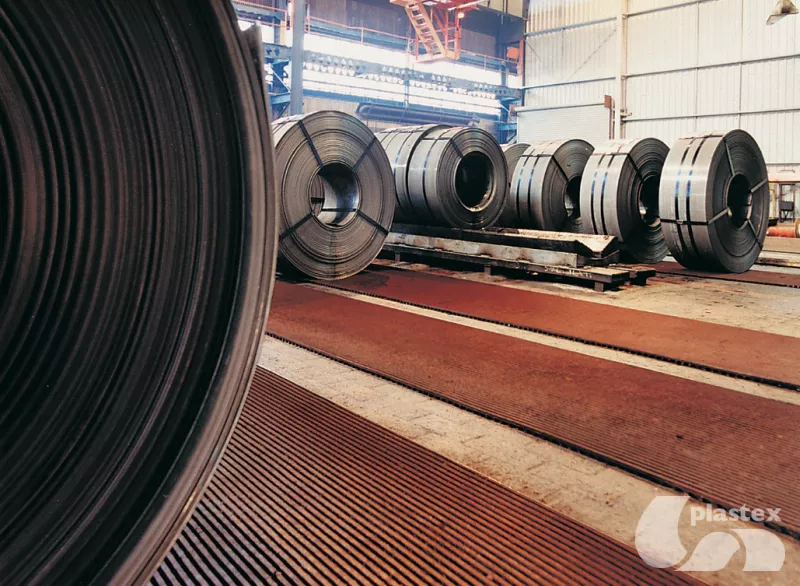

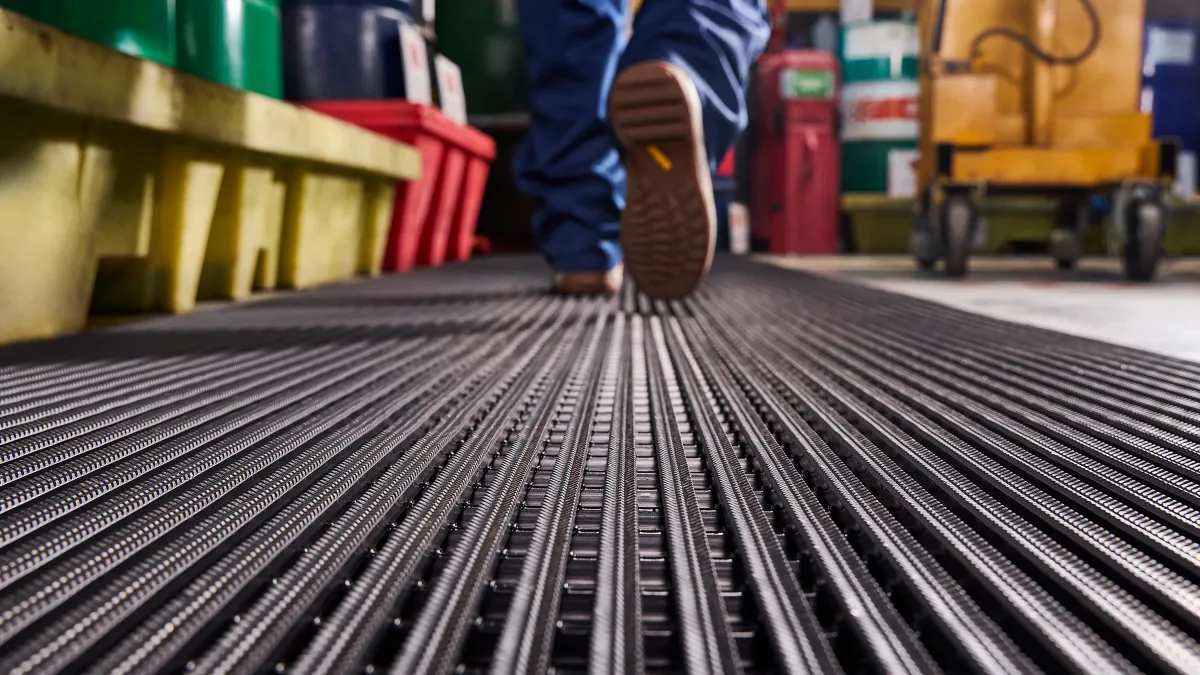

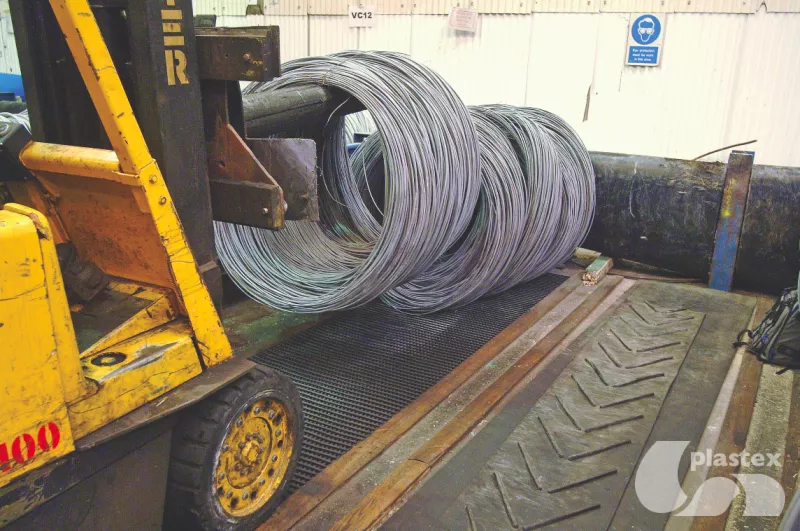

This heavy-tread matting provides the highest slip resistance, while the elevated height means any hazardous matter is quickly dispersed and drained. This makes it an ideal workshop walkway mat, factory floor mat or warehouse walk-off mat.

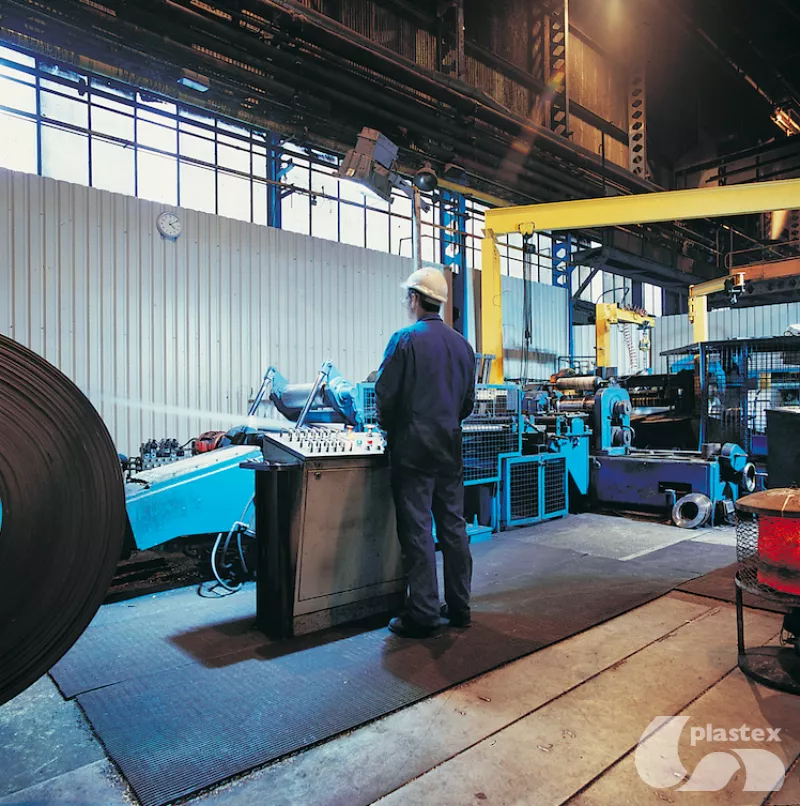

This heavy-duty industrial mat is also perfect for workplaces with standing employees: the two-layer construction provides comfortable cushioning to help reduce fatigue and boost productivity.
Flexible formats
Choose from 5m (16'6") and 10m (33") rolls or ramped modules
Quick installation
Simply roll out this PVC matting and cut to fit on site. Contours to uneven surfaces
Simple to maintain
Easy to clean with a high pressure hose
Features
Diamond-tread surface
Two-layer construction
Proven anti-fatigue properties
Made from flexible PVC
Comes in 5m (16'6") and 10m (33") rolls or ramped modules
Benefits
Certified slip resistant (DIN 51130: R11, ASTM 1677: 0.6/0.5)
Excellent drainage (DIN 51130: V10)
Boosts productivity
Cut to fit on site, contours to uneven surfaces
Quick to install, easy to clean
| Flexigrid | |
| Height | 20mm (3/4") |
| Standard roll options | 5 x 0.6m (16'6" x 2’) |
| 5 x 0.91m (16'6" x 3’) | |
| 10 x 0.6m (33' x 2’) | |
| 10 x 0.91m (33' x 3’) | |
| Standard module options | 1.8 x 0.6m (6' x 2') |
| 1.8 x 0.91m (6' x 3') | |
| Weight | 9.8kg/m2 (2lb/sq.ft) |
Surface modules are supplied with factory fitted PVC ramped edging to four sides
| Acoustic | Excellent sound absorption. |
| Chemical | Resistant to most acids, alkalines and oils. You can read more about specific chemical resistances by downloading this information sheet. |
| Composition | Made from flexible Polyvinyl Chloride (PVC). |
| Environment | Flexigrid is 100% recyclable. When manufactured in black, it's made using our post industrial recycled material. The recycled content averages at least 30%, but we strive for 100% wherever possible. We don’t use any substances included in the SVHC list under REACH in any of our matting products. |
| Fire | DIN 4102 Part 1- Classification B2 |
| Hygiene | Made from non-porous PVC that’s naturally resistant to bacteria growth. |
| Reversion | Thermoplastic shrinkage can result in size reductions up to 2%. This may be accelerated in hot environments. You can read more about the causes of shrinkage by downloading thisinformation sheet. |
| Slip resistance | DIN 51130: R11, V10 |
| Thermal | Designed to function at temperatures from -23°C and up to +60°C. Slight size variation may occur at temperature extremes. |
| UV light | Resistant to PVC degradation. |
| Warranty | Four years. Visit our policies page for more information about warranties. |

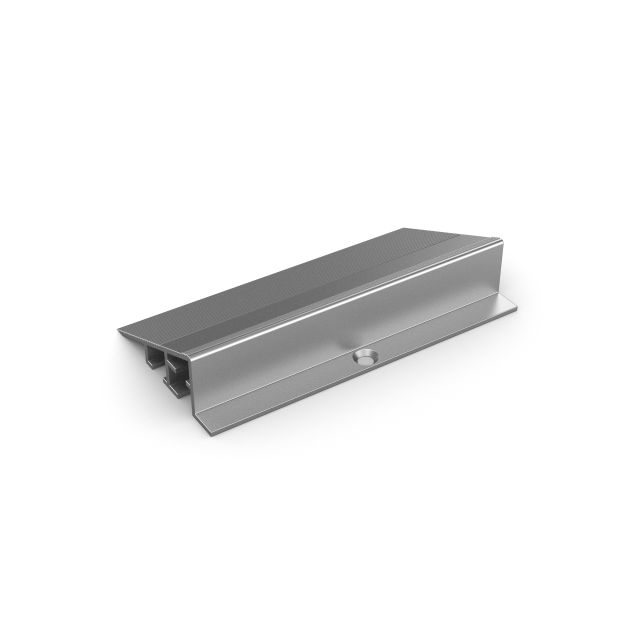

Aluminium edging (H: 20mm)
Supplied in sections of 2m (6'6") length with fixing screws and plugs. Comes in anodised aluminium. Size: 20mm x 50mm x 2m (7/8” x 2 3/16” x 6’6”)

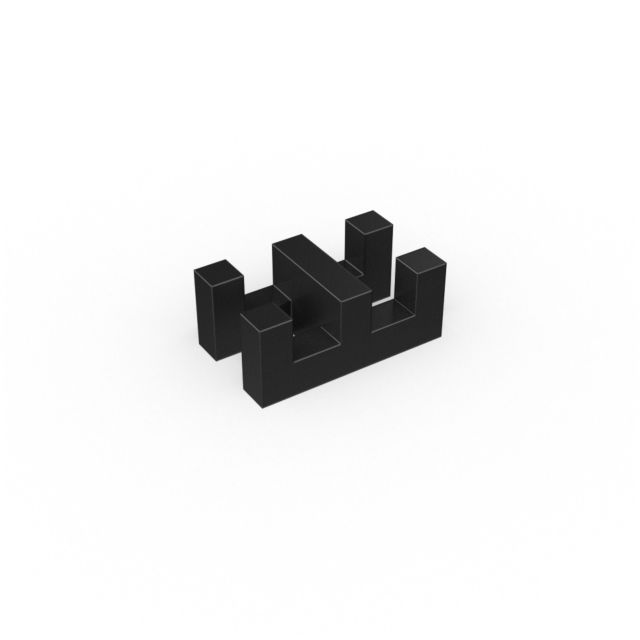

Connector clips: dual purpose (H: 25mm)
For joining sections of matting together side-to-side or end-to-end. Supplied in packs of 10.

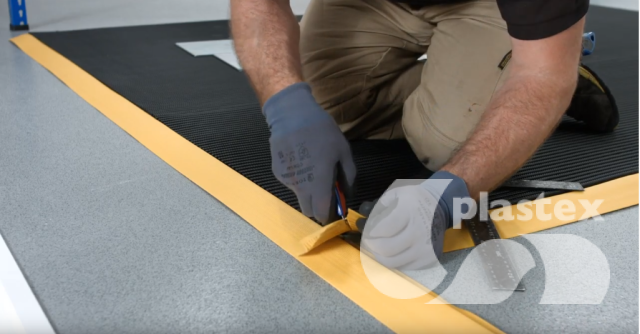

Flexigrid's one-piece construction means installation is simple
- Comes in 5m and 10m rolls, or choose ramped modules
- Easy to cut to fit on site
- Contours to uneven surfaces

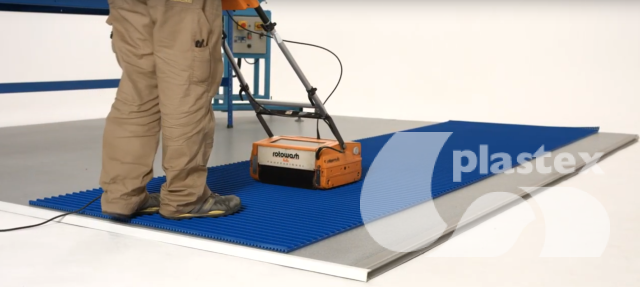

Keeping Flexigrid looking good is easy
- Light to handle
- Roll or lift to clean
- Easy to clean with a high pressure hose
Features
Diamond-tread surface
Two-layer construction
Proven anti-fatigue properties
Made from flexible PVC
Comes in 5m (16'6") and 10m (33") rolls or ramped modules
Benefits
Certified slip resistant (DIN 51130: R11, ASTM 1677: 0.6/0.5)
Excellent drainage (DIN 51130: V10)
Boosts productivity
Cut to fit on site, contours to uneven surfaces
Quick to install, easy to clean
| Flexigrid | |
| Height | 20mm (3/4") |
| Standard roll options | 5 x 0.6m (16'6" x 2’) |
| 5 x 0.91m (16'6" x 3’) | |
| 10 x 0.6m (33' x 2’) | |
| 10 x 0.91m (33' x 3’) | |
| Standard module options | 1.8 x 0.6m (6' x 2') |
| 1.8 x 0.91m (6' x 3') | |
| Weight | 9.8kg/m2 (2lb/sq.ft) |
Surface modules are supplied with factory fitted PVC ramped edging to four sides
| Acoustic | Excellent sound absorption. |
| Chemical | Resistant to most acids, alkalines and oils. You can read more about specific chemical resistances by downloading this information sheet. |
| Composition | Made from flexible Polyvinyl Chloride (PVC). |
| Environment | Flexigrid is 100% recyclable. When manufactured in black, it's made using our post industrial recycled material. The recycled content averages at least 30%, but we strive for 100% wherever possible. We don’t use any substances included in the SVHC list under REACH in any of our matting products. |
| Fire | DIN 4102 Part 1- Classification B2 |
| Hygiene | Made from non-porous PVC that’s naturally resistant to bacteria growth. |
| Reversion | Thermoplastic shrinkage can result in size reductions up to 2%. This may be accelerated in hot environments. You can read more about the causes of shrinkage by downloading thisinformation sheet. |
| Slip resistance | DIN 51130: R11, V10 |
| Thermal | Designed to function at temperatures from -23°C and up to +60°C. Slight size variation may occur at temperature extremes. |
| UV light | Resistant to PVC degradation. |
| Warranty | Four years. Visit our policies page for more information about warranties. |
Aluminium edging (H: 20mm)
Supplied in sections of 2m (6'6") length with fixing screws and plugs. Comes in anodised aluminium. Size: 20mm x 50mm x 2m (7/8” x 2 3/16” x 6’6”)
Connector clips: dual purpose (H: 25mm)
For joining sections of matting together side-to-side or end-to-end. Supplied in packs of 10.
Flexigrid's one-piece construction means installation is simple
- Comes in 5m and 10m rolls, or choose ramped modules
- Easy to cut to fit on site
- Contours to uneven surfaces
Keeping Flexigrid looking good is easy
- Light to handle
- Roll or lift to clean
- Easy to clean with a high pressure hose
