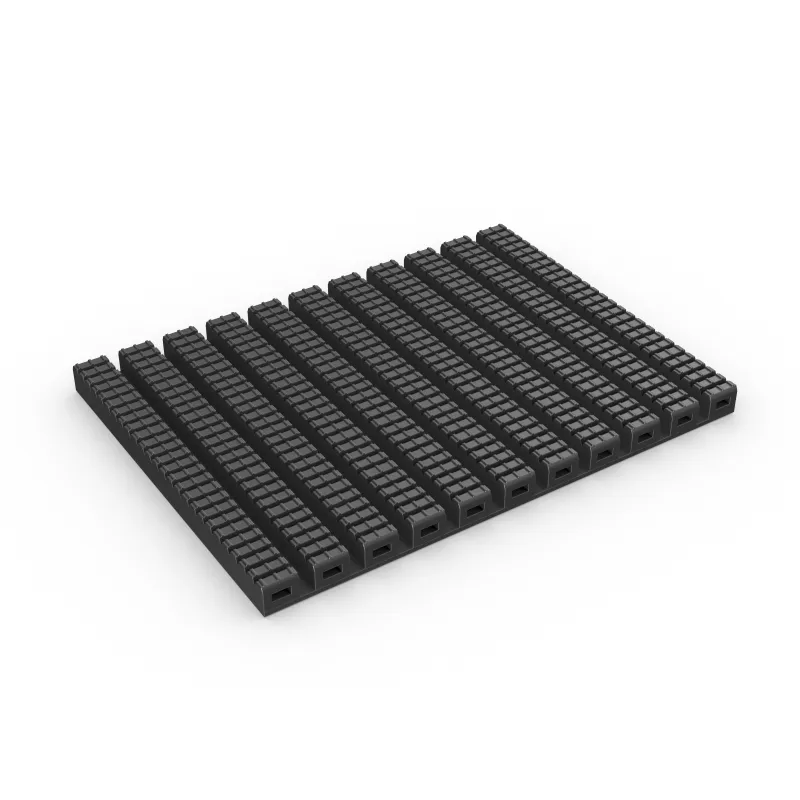

Gateway SB
Solid-backed, ribbed entrance mat that can be used in internal or external environments with no mat well.
Designed to integrate easily with existing floor coverings, Gateway SB (Frontrunner SB) is a low profile, solid-backed walk-off mat.
The ribbed pattern scrapes shoes and wheels clean, while the grid construction traps and collects debris, helping to reduce the amount of dirt walked into the building.
Wheel- and heel-proof and resistant to rolling, this indoor entrance mat’s commercial benefits are numerous, as it can be loose laid in just about any commercial or retail environment. Just roll it out, cut to fit and lay within your existing carpet tiles or luxury vinyl tiles – no mat well needed.
You can also place this ribbed entrance mat directly onto your current floor, with ramped PVC edges creating a slip-resistant entrance walkway.
Seamless integration
Comes in 33’ (10m) rolls or order a custom size
Simple installation
Simply roll out and cut to fit on site; contours to uneven surfaces.
Easy to maintain
This solid mat is light to handle; no special cleaning tools needed
Features
Etched pattern
One layer hollow construction
Ribbed vinyl pattern with solid backing
6.5mm grid height
Close mesh grid
Benefits
Certified slip resistant (DIN 51130: R11, ASTM C1028: 0.6/0.6)
Light to handle
Easy to install, no need for recessed mat well
Loose lay or adhere to subfloor
Wheel and heel proof
| Gateway SB | |
| Height | 6.5mm (1/4") |
| Standard roll option | 10 x 1m (33' x 3'3’) |
| Weight | 6.3 kg/m2 (1.3lb/sq.ft) |
| Acoustic | Excellent sound absorption. |
| Chemical | Resistant to most acids, alkalines and oils. You can read more about specific chemical resistances by downloading this information sheet. |
| Composition | Flexible Polyvinyl Chloride (PVC) |
| Environment | Gateway SB is 100% recyclable. We don’t use any substances included in the SVHC list under REACH in any of our matting products. |
| Fire | EN ISO 13501-1:2007-Cfl-S1, ASTM E648 – Class 2 |
| Reversion | Thermoplastic shrinkage can result in size reductions up to 2%. This may be accelerated in hot environments. You can read more about the causes of shrinkage by downloading this information sheet. |
| Rolling resistance | ASTM F 2753: No apparent damage to the vinyl portion of the system after 1,000 cycles at 500lbs |
| Slip resistance | ASTM E303 Dry/Wet with lines along–lines across 74-95 / 61-74 DIN 51130: R11, V10 |
| Thermal | Designed to function at temperatures from -23°C and up to +60°C. Slight size variation may occur at temperature extremes. |
| UV light | Resistant to PVC degradation |
| Warranty | Three years. Visit our policies page for more information about warranties. |
PVC edging (SB / SB+)
Supplied in rolls of 60m (197") length. One tube of cold welding paste recommended for every 10m of edging. Comes in black and dark grey. Size: 6.5mm x 30mm x 60m (1/4" x 1" x 197')
PVC joining strip (SB / SB+)
Can be welded to join rolls end-to-end or side-to-side when doing large installations. Comes in black. Size: 3.5mm x 3.6m (1/8" x 11'9")
Gateway SB's one-piece construction means installation is simple
There are two ways to install SB: you can adhere directly to the floor, or loose lay modules with PVC edging. For large installations with medium to high traffic, we recommend adhering your mat using F Ball’s Styccobond F73 PLUS, which is a single-part, heavy-duty adhesive that provides high bond strength.
Watch the videos below for a step-by-step installation guide, or download the installation instructions here.
Keeping Gateway SB looking good is easy
- Light to handle
- Simply roll or lift to clean
- No special tools needed
- Quick and easy to clean because of the solid backing
Watch our step-by-step guide to daily, weekly and monthly cleaning below or download the cleaning instructions here.
Download our BIM objects in both Revit and IFC file types
Features
Etched pattern
One layer hollow construction
Ribbed vinyl pattern with solid backing
6.5mm grid height
Close mesh grid
Benefits
Certified slip resistant (DIN 51130: R11, ASTM C1028: 0.6/0.6)
Light to handle
Easy to install, no need for recessed mat well
Loose lay or adhere to subfloor
Wheel and heel proof
| Gateway SB | |
| Height | 6.5mm (1/4") |
| Standard roll option | 10 x 1m (33' x 3'3’) |
| Weight | 6.3 kg/m2 (1.3lb/sq.ft) |
| Acoustic | Excellent sound absorption. |
| Chemical | Resistant to most acids, alkalines and oils. You can read more about specific chemical resistances by downloading this information sheet. |
| Composition | Flexible Polyvinyl Chloride (PVC) |
| Environment | Gateway SB is 100% recyclable. We don’t use any substances included in the SVHC list under REACH in any of our matting products. |
| Fire | EN ISO 13501-1:2007-Cfl-S1, ASTM E648 – Class 2 |
| Reversion | Thermoplastic shrinkage can result in size reductions up to 2%. This may be accelerated in hot environments. You can read more about the causes of shrinkage by downloading this information sheet. |
| Rolling resistance | ASTM F 2753: No apparent damage to the vinyl portion of the system after 1,000 cycles at 500lbs |
| Slip resistance | ASTM E303 Dry/Wet with lines along–lines across 74-95 / 61-74 DIN 51130: R11, V10 |
| Thermal | Designed to function at temperatures from -23°C and up to +60°C. Slight size variation may occur at temperature extremes. |
| UV light | Resistant to PVC degradation |
| Warranty | Three years. Visit our policies page for more information about warranties. |
PVC edging (SB / SB+)
Supplied in rolls of 60m (197") length. One tube of cold welding paste recommended for every 10m of edging. Comes in black and dark grey. Size: 6.5mm x 30mm x 60m (1/4" x 1" x 197')
PVC joining strip (SB / SB+)
Can be welded to join rolls end-to-end or side-to-side when doing large installations. Comes in black. Size: 3.5mm x 3.6m (1/8" x 11'9")
Gateway SB's one-piece construction means installation is simple
There are two ways to install SB: you can adhere directly to the floor, or loose lay modules with PVC edging. For large installations with medium to high traffic, we recommend adhering your mat using F Ball’s Styccobond F73 PLUS, which is a single-part, heavy-duty adhesive that provides high bond strength.
Watch the videos below for a step-by-step installation guide, or download the installation instructions here.
Keeping Gateway SB looking good is easy
- Light to handle
- Simply roll or lift to clean
- No special tools needed
- Quick and easy to clean because of the solid backing
Watch our step-by-step guide to daily, weekly and monthly cleaning below or download the cleaning instructions here.
Download our BIM objects in both Revit and IFC file types
