Gateway 10 Plus
Internal entrance matting with carpet inserts for thorough moisture removal.
Slip resistant, wheel-proof and heel-proof, Gateway 10 Plus (Frontrunner Plus) is an absorbent commercial entrance carpet mat specifically designed to stop dirt and moisture in its tracks.
The mat's embossed tread pattern scrapes shoes and wheels clean, while absorbent entrance matting carpet inserts remove and dry any associated moisture. Not only does this reduce cleaning demands, it also expands the life of your original floor finishes and can keep your building interior looking stylish for longer. These qualities make it perfect for use in commercial entrances, especially for businesses and shopping centres with high foot traffic.
Choose from 50 colour and style combinations that can be surface-mounted or placed in an entrance mat well – you can even add a logo panel for personal branding.
Seamless integration
Choose from modules with ramped PVC edging, rolls in standard widths and 10m lengths, or order a custom size
Simple installation
One-piece construction means you can cut to fit on site, with no previous site visits needed
Easy to maintain
Simply roll or lift to clean, no special tools needed
Features
Embossed pattern
Two layer open-grid construction
Absorbent carpet inserts
Close mesh grid
Comes in 10m (33') rolls or modules
Benefits
Slip resistant, high soil removal
Excellent drainage
Maximum moisture removal
Heel and wheel proof
Seamless installation
| Gateway 10 Plus | Gateway 14 Plus | |
| Height | 10.5-12mm (13/32" - 1/2") | 14-16mm (9/16" – 5/8") |
| Standard roll options | 10 x 0.6m (33' x 2') | 10 x 0.6m (33' x 2’) |
| 10 x 0.91m (33' x 3') | 10 x 0.91m (33' x 3’) | |
| 10 x 1.22m (33' x 4') | 10 x 1.22m (33' x 4’) | |
| Standard module options | 0.8 x 1.22m (2'7" x 4’) | |
| 1 x 1.5m (3'3" x 4’11") | ||
| 1.1 x 2m (3'7" x 6’7") | ||
| Weight | 8.7kg/m2 (1.8lbs/sq.ft) | 10.5 kg/m2 (2lbs/sq.ft) |
Surface modules are supplied with factory fitted PVC ramped edging to four sides.
PVC GRID:
| Acoustic | Excellent sound absorption. |
| Chemical | Resistant to most acids, alkalines and oils. You can read more about specific chemical resistances by downloading this information sheet. |
| Composition | Flexible Polyvinyl Chloride (PVC). |
| Environment | We don’t use any substances included in the SVHC list under REACH in any of our matting products. |
| Reversion | Thermoplastic shrinkage can result in size reductions up to 2%. This may be accelerated in hot environments. You can read more about the causes of shrinkage by downloading this information sheet. |
| Slip resistance | Gateway Plus: ASTM E303 Dry/Wet with lines along–lines across 93-90 / 64-82 Frontrunner Plus: ASTM E303 Dry/Wet with lines along–lines across 104-87 / 69-62 |
| Thermal | Designed to function at temperatures from -23°C and up to +60°C. Slight size variation may occur at temperature extremes. |
| UV light | Resistant to PVC degradation. |
| Warranty | Gateway 10 Plus: two years. Gateway 14 Plus: three years. Visit our policies page for more information about warranties. |
ABSORBENT INSERTS (ZENO 600 SERIES):
| Wear classification | EN 1307 - 33, Commercial heavy |
| Pile material | ECONYL® , 100% regenerated polyamide BCF |
| Tuft base | 100% regenerated non woven polyester Colback™ |
| Phthalate Free backing | Waterproof Comfort™ vinyl |
| Total height | EN 1765 ± 8.7 mm |
| Pile height | EN 1766 ± 6.7 mm |
| Total weight | EN 8543 ± 4260 g/m² |
Pile yarn weight | ± 820 g/m² |
| Pile density | ± 0,127 g/cm³ |
| Fire | EN ISO 13501-1:2007 Cfl-S1 |
| Suitable for castor chairs | EN 985 A, intensive use r=2.8 |
| Colours | 10 |
For surface-mounted installations: Gateway 10 Plus
Aluminum ramp (H:10mm)
Supplied in sections of 2m (6'6") length , optional Tapcon Concrete Screws are available. Comes in anodized aluminum. Size: 10mm x 45mm x 2m (3/8" x 1 13 /16" x 6'6")
PVC edging (H: 10mm, W: 50mm)
Supplied in rolls of 10.1m (33') One tube of cold welding paste recommended for every 10m of edging. Comes in black and dark grey. Size: 10mm x 50mm x 10.1m (3/8" x 2" x 33')
Connector clips: side-to-side (H: 10mm)
For joining sections of low profile matting together side-to-side. Supplied in packs of 10
PVC snap track (H: 10.5mm)
Two-part snap track that can be welded together to join rolls end-to-end or side-to-side to cover large areas. We recommend one tube of cold welding paste for every 10m of edging. Comes in dark grey. Size: 10.5mm x 2.5m (13/32" x 8'2")
For recessed installations: Gateway 10 Plus
Aluminum mat divider (H:10mm)
If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need an aluminum mat divider to secure the different sections together. Mat dividers can also be used to divide the overall vestibule into smaller sections, or as a perimeter frame in recessed applications. Supplied in sections of 3m (10') length. Optional “spike” concrete anchors are available. Comes in aluminum. Size: 10mm x 18mm x 3m (3/8" x 11/16" x 10’)
R frame (H: 10mm)
You'll need these to secure the matting on the left-to-right edges. Supplied in sections of 3m (10') length with fixing screws and plugs. Comes in anodised aluminum, powder coated dark grey and black. Size: 10mm x 12mm (3/8" x 15/32")
H section (H: 10mm)
If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a H section to secure the different sections together. Supplied in sections of 3.6m (12') length, with fixing screws and plugs. Comes in black, with mat insert colour specified. Size: 10mm x 13mm (3/8" x 1/2")
U section (H: 10mm)
If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a U section to secure the different sections together. Supplied in sections of 3m (10') length, with fixing screws and plugs. Comes in anodised aluminum, powder coated dark grey and black. Size: 10mm x 18mm (3/8" x 11/16")
Z frame (H: 10mm)
Installing matting next to ceramic tiles? You'll need a Z frame to secure the matting. Supplied in sections of 3.6m (12') length with fixing screws and plugs. Comes in anodised aluminum. Size: 10mm x 24mm (3/8" x 15/16")
For surface-mounted installations: Gateway 14 Plus
PVC edging (H: 14mm, W: 60mm)
Supplied in rolls of 10.1m (33') length. One tube of cold welding paste recommended for every 10m of edging. Comes in black, dark grey, dark brown, holly green, Oxford blue, yellow. Size: 14mm x 60mm x 10.1m (9/16" x 2 1/2" x 33')
PVC edging (H: 15mm, W: 100mm)
Supplied in rolls of 10.1m (33') length. One tube of cold welding paste recommended for every 10m of edging. Comes in black, dark grey and yellow. Size: 14mm x 100mm x 10.1m (9/16" x 3 3/4" x 33')
Aluminum edging (H: 14mm)
Supplied in sections of 2m (6'6") length with fixing screws and plugs. Comes in anodised aluminum and powder coated yellow. Size: 14mm x 45mm x 2m (9/16" x 1 13 /16" x 6'6")
Connector clips: side-to-side (H: 14mm)
For joining sections of matting together side-to-side. Supplied in packs of 10
PVC snap track (H: 14mm)
Two-part snap track that can be welded together to join rolls end-to-end or side-to-side to cover large areas. We recommend one tube of cold welding paste for every 10m of edging. Comes in black and dark grey. Size: 14mm x 2.5m (9/16" x 8'2")
For recessed installations: Gateway 14 Plus
R frame (H: 14mm)
You'll need these to secure the matting on the left-to-right edges. Supplied in sections of 3m (10') length with fixing screws and plugs. Comes in anodised aluminum, powder coated dark grey and black. Size: 14mm x 12mm (9/16" x 15/32")
J frame (H: 18mm)
Installing Gateway against a wall? You'll need a J frame to secure the matting on the left-to-right edges. Supplied in sections of 3m (10') length. Comes in dark grey and black. Size: 18mm x 60mm (11/16" x 2 3/8")
T frame (H: 14mm)
You can use a T frame (27mm) to divide the matting into sections left-to-right – this makes it easier to lift and clean. Supplied in sections of 3m (10') length with fixing screws and plugs. Comes in anodised aluminum, powder coated dark grey and black
TL frame (H: 14mm)
You can use a T/L frame (55mm) to divide the matting into sections left-to-right – this makes it easier to lift and clean. Supplied in sections of 3m (10') length with fixing screws and plugs. Comes in anodised aluminum
L frame (H: 15mm)
Installing around a circular door or non rectangular space? You'll need a L frame to secure the matting. Size: 15mm x 2.7m length (5/8" x 8')
U section (H: 14mm)
If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a U section to secure the different sections together. Supplied in sections of 3m (10') length, with fixing screws and plugs. Comes in anodised aluminum, powder coated dark grey and black. Size: 14mm x 19mm (9/16" x 3/4")
H section (H: 14mm)
If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a H section to secure the different sections together. Supplied in sections of 3m (12') length, with fixing screws and plugs. Comes in black, with mat insert colour specified. Size: 14mm x 13mm (9/16" x 1/2").
Gateway 14 Plus' one-piece construction means installation is simple
- Cut to fit on site – no special tools or previous site visits needed
- Integrates with all internal floor coverings
- Fits with different well depths
- Contours to the floor

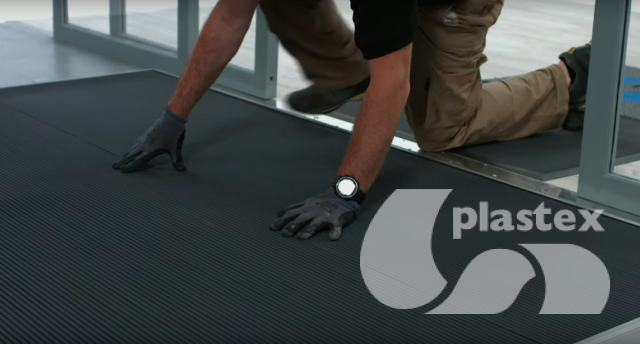

Watch the videos for step-by-step installation guides or download the instructions below
Keeping Gateway 14 Plus looking good is easy
- Reduces cleaning intervals
- Simply roll or lift to clean
- No special tools needed
- Easy to vacuum

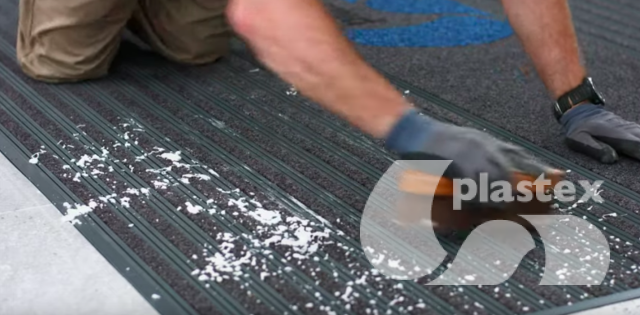

Watch our step-by-step guide to daily, weekly and monthly cleaning or download the cleaning instructions below
We can incorporate a logo panel on any recessed or surface mounted mats.
The logo runs the width of the mat well and can either be 30cm or 45cm tall.
Get in touch with a member of our team to find out more.
Download our BIM objects in both Revit and IFC file types
